Emco maier pcmill-50 cnc milling machine complete sys

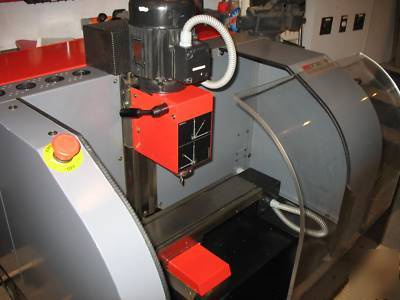

There are a lot of small size cnc machines, but few that are truly built to an industrial standard. Emco Maier manufactured this beautiful mill in Austria with high precision ways and ballscrews. They make a full range of cnc machines and they apply the same level of quality and design to all of their machines, big and small. In fact, as we got to working on this machine we couldn't believe how rigid, solid, and well-built this was compared to some of the other small machines we have seen and worked with. This is the perfect benchtop milling solution for prototyping, modelmaking, engraving, circuit board manufacturing, or small woodworking.

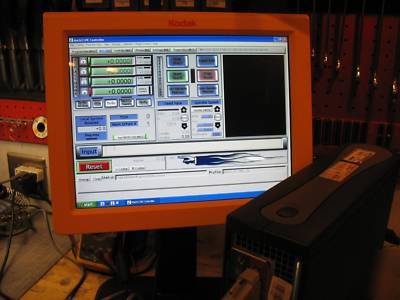

Controlling this machine is a touchscreen Dell pc running the popular Mach III cnc control software ( ). We are a Bobcad software dealer and are including Bobcad V21 CAD and CAM software so you have a complete design to manufacturing solution right on your bench. This software alone retails for $1995 at Bobcad's website!

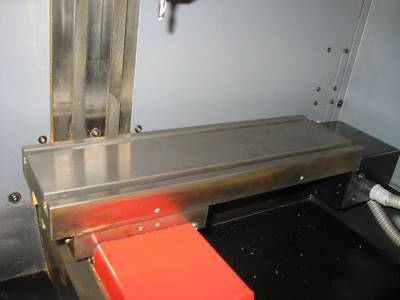

Machine Specs: *Vertical or Horizontal Milling *Travel: X7.5", Y3.54", Z7.5" *Milling Table: 16.5" x 4.9" *2 T slots .4"W 3.5 C to C* Main Drive Asynchronous AC Motor 3/4HP Continuous 200 to 3000* RPM. *Rapid Traverse Rate X,Y,Z 50+ IPM. Feed Rate X,Y,Z 0-50+ IPM. * Electrical Connection 110 V 60 Hz. * Machine Weight 360 Lbs. and Dimensions: 33" x 34" x 32"
