Mul-t-lock hercular single sided deadbolt multlock

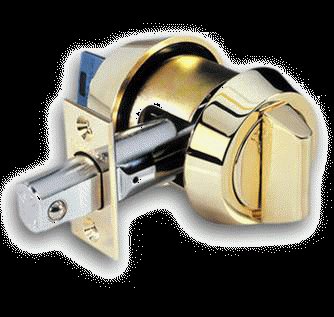

Hercular Deadbolt Single Cylinder
High security deadbolt system for commercial and residential doors.
90 key rotation throws the bolt 1 toward the frame, interlocking two
hardened ball bearings with the strike to increase jimmying resistance.
Ring and cylinder: solid brass Bolt anti drilling ring: hardened steel Strike: steel
Pins: nickel silver and stainless steel.
*Suitable for two backsets, no need for different parts.
*Easy and friendly to install.
*Easy conversion between standards and drive-in.
*The changeable faceplate has an expanded angle for installation on beveled doors.
*Supplied as standard with 1 (25mm) throw.
*Optional as double or single cylinder.
*Thumbturn tail self-adjustable to door thickness.
*Option for captive key deadbolt Thumbturn can be set horizontally or vertically in locked position.
Mul T Lock s unique, high precision
pin tumbler system. Pick and drill
resistant for High Security needs.
Reversible nickel silver key with
plastic key head and colored insert
for identification. Also available in
Keys marked DO NOT DUPLICATE
Classic, Interactive platforms
3 IN 1 (changeable combination)
UL437 - pick and drill resistance
