New allen bradley 1756-enbt, ser.a, sealed box

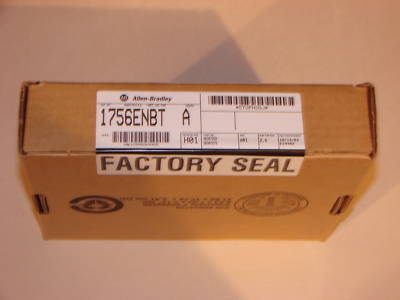

Allen Bradley 1756-ENBT, Series A, ControlLogix EtherNet/IP 10/100 Bridge Moduler. New in factory sealed box.
SPEC.- Communication rate: 10/100 Mbps; Connections: 64 TCP/IP connections maX. and 128 Logix connections (I/O and information); Current draw @ 5.1V DC: 700 mA; Current draw @ 24V DC: 3 mA; Power dissipation: 3.65 W; Ports: 1 Ethernet RJ45 Category 5; Ethernet cable: 802.3 compliant shielded or unshielded twisted pair; Isolation voltage: 30 V (continuous), Basic Insulation Type Tested at 707V DC for 60 s. The 1756-ENBT is works either as an interface for a ControlLogix controller to communicate with other devices over an EtherNet/IP network or as an adapter for 1756 I/O modules on an EtherNet/IP network. The 1756ENBT module communicates at a very fast rate (10/100 Mbps full duplex), includes on-board memory, and can replace the 1756-ENET modules. The module is web-enabled.
