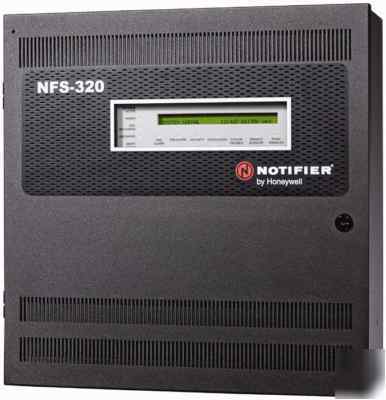

Intelligent Fire Alarm Control Panels
The NFS-320 intelligent Fire Alarm Control Panel is part of the
ONYX Series of Fire Alarm Controls from NOTIFIER.
In stand-alone or network configurations, ONYX Series products
meet virtually every application requirement.
Designed with modularity and ease of system planning, the
NFS-320 can be configured with just a few devices for small
building applications, or for a large campus or high-rise application.
Simply add additional peripheral equipment to suit the
application. For installations using NFS-320C, an optional ACM
Series annunciator can be mounted in the same cabinet (up to
48 zones/points, order seperately).
The FireWatch Series internet monitoring modules IPDACT-2
and IPDACT-2UD permit monitoring of alarm signals over the
Internet, saving the monthly cost of two dedicated business telephone
lines. Although not required, the secondary telephone
line may be retained providing backup communication over the
public switched telephone line.
Unless called out with a version-specific R , C or E at
the end of the part number, NFS-320 refers to models NFS-320,
NFS-320R, NFS-320C, and NFS-320E; similarly, CPU-320 refers
to the main circuit board for CPU-320, CPU-320C, and CPU-320E.
Listed to UL Standard 864, 9th edition.
One isolated intelligent Signaling Line Circuit (SLC) Style 4, 6
Up to 159 detectors (any mix of ion, photo, thermal, or multisensor)
and 159 modules (Addressable pull stations, normally
open contact devices, two-wire smoke, notification, or
Standard 80-character display.
High-speed network for up to 200 nodes (NFS2-3030,
NFS2-640, NFS-320(C), NCA-2, DVC, ONYXWorks, NCS,
Standard network for up to 103 nodes (NFS2-3030, NFS2-
640, NFS-320(C), NCA-2, DVC, ONYXWorks, NCS, NFS-
3030, NFS-640, NCA, AFP-200, AFP-300/400, AFP-1010,
and AM2020). Up to 54 nodes when DVC is used in network
6.0 amp power supply with four Class A/B built-in Notification
Appliance Circuits (NAC). Selectable System Sensor, Wheelock,
or Gentex strobe synchronization.
Built-in Alarm, Trouble, Security, and Supervisory relays.
VeriFire Tools online or offline programming utility. Upload/
Download, save, store, check, compare, and simulate panel
databases. Upgrade panel firmware.
Autoprogramming and Walk Test reports.
Optional universal 318-point DACT.
80-character remote annunciators (up to 32).
EIA-485 annunciators, including custom graphics.
Printer interface (80-column and 40-column printers).
History file with 800-event capacity in nonvolatile memory,
plus separate 200-event alarm-only file.
Alarm Verification selection per point, with tally.
Presignal/Positive Alarm Sequence (PAS).
Silence inhibit and Auto Silence timer options.
Field-programmable on panel or on PC, with VeriFire Tools
program check, compare, simulate.
Battery charger supports 18 200 amp hour batteries
Non-alarm points for lower priority functions.
Remote ACK/Signal Silence/System Reset/Drill via monitor
Automatic time control functions, with holiday exceptions.
Surface Mount Technology (SMT) electronics.
Extensive, built-in transient protection.
Powerful Boolean logic equations.
FLASHSCAN INTELLIGENT FEATURES:
Poll up to 318 devices in less than two seconds.
Activate up to 159 outputs in less than five seconds.
Multicolor LEDs blink device address during Walk Test.
Fully digital, high-precision protocol (U.S. Patent 5,539,389).
Manual sensitivity adjustment nine levels.
Pre-alarm ONYX intelligent sensing nine levels.
Day/Night automatic sensitivity adjustment.
0.5 to 2.35%/foot obscuration.
0.02 to 2.0%/foot obscuration.
1.0 to 4.0%/foot obscuration.
Drift compensation (U.S. Patent 5,764,142).
Page 2 of 6 DN-7112:D3 1/25/2010
Degraded mode in the unlikely event that the CPU-320
microprocessor fails, FlashScan detectors revert to degraded
operation and can activate the CPU-320 NAC circuits and
alarm relay. Each of the four built-in panel circuits includes a
Disable/Enable switch for this feature.
Multi-detector algorithm involves nearby detectors in alarm
decision (U.S. Patent 5,627,515).
Automatic detector sensitivity testing (NFPA-72 compliant).
Maintenance alert (two levels).
ADVANCED MULTI-CRITERIA DETECTOR
Detects all four major elements of a fire (smoke, heat, CO,
Automatic drift compensation of smoke sensor and CO cell.
High nuisance-alarm immunity.
FSL-751 VIEW (VERY INTELLIGENT EARLY WARNING)
Revolutionary spot laser design.
Advanced ONYX intelligent sensing algorithms differentiate
between smoke and non-smoke signals (U.S. Patent
Addressable operation pinpoints the fire location.
No moving parts to fail or filters to change.
Early warning performance comparable to the best aspiration
systems at a fraction of the lifetime cost.
LOW-PROFILE INTELLIGENT MULTI-SENSOR:
Detector automatically adjusts sensitivity levels without operator
intervention or programming. Sensitivity increases with
Microprocessor-based technology; combination photo and
FlashScan or classic mode compatible.
Low-temperature warning signal at 40 F 5 F (4.44 C
Sophisticated cross-zone (three options).
Delay timer and Discharge timers (adjustable).
HIGH-EFFICIENCY OFFLINE SWITCHING
3.0 AMP POWER SUPPLY (6.0 A IN ALARM):
120 VAC (NFS-320/NFS-320C); 240 VAC (NFS-320E).
Displays battery current/voltage on panel (with display).
Integrates with FireVoice-25/50 Series
Integrates via serial connection with FireVoice-25/50ZS
World-Leading Detector Protocol
At the heart of the NFS-320 is a set of detection devices and
device protocol FlashScan (U.S. Patent 5,539,389). Flash-
Scan is an all-digital protocol that gives superior precision and
In addition to providing quick identification of an active input
device, this new protocol can also activate many output devices
in a fraction of the time required by competitive protocols. This
high speed also allows the NFS-320 to have the largest device
per loop capacity in the industry 318 points yet every input
and output device is sampled in less than two seconds. The
DN-7112:D3 1/25/2010 Page 3 of 6
microprocessor-based FlashScan detectors have bicolor LEDs
that can be coded to provide diagnostic information, such as
device address during Walk Test.
Intelligent sensing is a set of software algorithms that provides
the NFS-320 with industry-leading smoke detection capability.
These complex algorithms require many calculations on each
reading of each detector, and are made possible by the highspeed
microcomputer used by the NFS-320.
Drift Compensation and Smoothing:
allows the detector to retain its original ability to detect actual
smoke, and resist false alarms, even as dirt accumulates. It
reduces maintenance requirements by allowing the system to
automatically perform the periodic sensitivity measurements
required by NFPA 72. Smoothing filters are also provided by
software to remove transient noise signals, such as those
caused by electrical interference.
When the drift compensation performed
for a detector reaches a certain level, the performance of
the detector may be compromised, and special warnings are
given. There are three warning levels: (1) Low Chamber value;
(2) Maintenance Alert, indicative of dust accumulation that is
near but below the allowed limit; (3) Maintenance Urgent, indicative
of dust accumulation above the allowed limit.
Nine sensitivity levels are provided for
alarm detection. These levels can be set manually, or can
change automatically between day and night. Nine levels of prealarm
sensitivity can also be selected, based on predetermined
levels of alarm. Pre-alarm operation can be latching or selfrestoring,
and can be used to activate special control functions.
Each detector may be set for Self-
Optimizing pre-alarm. In this special mode, the detector
learns its normal environment, measuring the peak analog
readings over a long period of time, and setting the pre-alarm
level just above these normal peaks.
Cooperating Multi-Detector Sensing:
ONYX intelligent sensing is the ability of a smoke sensor to consider
readings from nearby sensors in making alarm or prealarm
decisions. Without statistical sacrifice in the ability to
resist false alarms, it allows a sensor to increase its sensitivity to
actual smoke by a factor of almost two to one.
This timesaving feature is a special software
routine. The FACP learns what devices are physically connected
and automatically loads them in the program with default
values for all parameters. Requiring less than one minute to run,
this routine allows the user to have almost immediate fire protection
in a new installation, even if only a portion of the detectors
Keypad Program Edit (with KDM-R2)
NOTIFIER intelligent panels, has the exclusive feature of program
creation and editing capability from the front panel keypad,
while continuing to provide fire protection
of the NFS-320 software is such that each point entry carries its
own program, including control-by-event links to other points.
This allows the program to be entered with independent perpoint
segments, while the NFS-320 simultaneously monitors
other (already installed) points for alarm conditions.
is an offline programming and test utility that can
greatly reduce installation programming time, and increase confidence
in the site-specific software. It is Windows -based and
provides technologically advanced capabilities to aid the
installer. The installer may create the entire program for the
NFS-320 in the comfort of the office, test it, store a backup file,
then bring it to the site and download from a laptop into the
The following guidelines outline the NFS-320 s flexible system
When designing the cabinet layout, consider separation
of power-limited and non-power-limited wiring as discussed in
the NFS-320 Installation Manual.
It is critical that all mounting holes of the NFS-320 are secured
with a screw or standoff to ensure continuity of Earth Ground.
If networking two or more control panels, each
unit requires a Network Control Module or High-Speed Network
Control Module (see Network Options on page 4).
These modules can be installed in any option board position
(see manual), and additional option boards can be mounted in
KDM-R2 Controls and Indicators
QWERTY type (keyboard layout).
Power; Fire Alarm; Pre-Alarm; Security;
Supervisory; System Trouble; Signals Silenced; Points Disabled;
Control Active; Abort; Pre-Discharge; Discharge.
Acknowledge/Scroll Display; Signal
Silence; Drill; System Reset; Lamp Test.
80 characters (2 x 40) with long-life LED backlight.
Note: Stand-alone and network systems require a main display.
On stand-alone systems, the panel s keypad provides the
required display. On network systems (two or more networked
fire panel nodes), at least one NCA-2, NCS, or ONYXWorks
annunciation device is required.
The standard, factory-assembled NFS-320 system
includes the following components: one CPU-320 control panel
cable, battery interconnect cables, and document kit); includes
integral power supply mounted to the CPU-320; one primary
display KDM-R2 keypad/display; and one cabinet for surface or
Purchase batteries separately. One or two
option boards may be mounted inside the NFS-320 cabinet;
additional option boards can be utilized in remote cabinets.
Same as NFS-320 above, but in red enclosure.
Based on NFS-320 above. NFS-320C supports
installation of an optional ACM-series annunciator in the same
For additional information on NFS-320C, see DN-60085.
Same as NFS-320 above, but with 240 V operation.
Trim ring for the NFS-320 cabinet.
Remote six-amp and eight-amp power supplies
COMPATIBLE DEVICES, EIA-232 PORTS
80-column printer. See DN-6956.
Printer, 40-column, 24 V. Mounted in external backbox.
COMPATIBLE DEVICES, EIA-485 PORTS
ONYX Series ACS annunciator up to 96 points of
annunciation with Alarm or Active LED, Trouble LED, and switch
per circuit. Active/Alarm LEDs can be programmed (by pow
4 of 6 DN-7112:D3 1/25/2010
ered-up switch selection) by point to be red, green, or yellow; the
Same LED and switch capabilities as ACM-24AT,
expands the ACM-24AT to 48, 72, or 96 points.
annunciation with Alarm or Active LED per circuit. Active/Alarm
LEDs can be programmed (by powered-up switch selection) in
Same LED capabilities as ACM-48A, expands the
Transmitter Module. Includes three reverse-polarity circuits
and one municipal box circuit; mount on NFS-320 chassis
80-character, backlit LCD display. Mounts up
to 6,000 ft. (1828.8 m) from panel. Up to 32 per FACP.
LCD-80/-80TM (DN-3198) and FDU-80 (DN-6820).
Lamp Driver Modules LDM-32, LDM-E32, and LDM-R32;
Remote Relay Module with eight Form-C contacts.
Can be located up to 6,000 ft. (1828.8 m) from panel on four
See ACM-8R data sheet, DN-3558.
Auxiliary Power Supply. Provides up to 6.0 amperes
of power for peripheral devices. Includes battery input and
transfer relay, and overcurrent protection. Mounts on two of
four positions on a CHS-4L or CHS-4 chassis.
Smoke control stations SCS-8, SCE-8, with lamp drivers
SCS-8L, SCE-8L; eight (expandable to 16) circuits.
Universal Digital Alarm Communicator Transmitter, 636
Programmable Universal Zone Coder provides positive
non-interfering successive zone coding. Microprocessorcontrolled,
field-programmable from IBM -compatible PCs
(requires optional programming kit). Mounts in
COMPATIBLE INTELLIGENT DEVICES
Heating kit for transmitter/receiver unit of
Heating kit for use with the reflector of FSB-200(S)
Long-range accessory kit, FSB-200(S) below. See
Multi-mount kit, FSB-200(S) below. See DN-6985.
Surface-mount kit, FSB-200(S) below. See DN-
Intelligent beam smoke detector. See DN-6985.
Intelligent beam smoke detector with integral sensitivity
FlashScan IntelliQuad Advanced Multi-Criteria Detector.
Low-profile FlashScan ionization detector. See DN-
Low-profile FlashScan photoelectric detector. See
Low-profile FlashScan photoelectric detector with
FlashScan thermal detector 135 F (57 C). See
FlashScan thermal detector 135 F (57 C) with rateof-
FlashScan 190 F (88 C) high-temperature thermal
InnovairFlex low-flow non-relay duct-detector housing
(order FSP-851 separately). Replaces FSD-751PL/FSD-
Same as above with NEMA-4 rating, watertight. See
FlashScan Acclimate Plus low-profile multi-sensor
FlashScan VIEW laser photo detector. See DN-6886.
Low-profile relay base. See DN-60054.
Isolator base for low-profile detectors. See DN-60054.
Low-profile base. Standard U.S. style. See DN-60054.
European-style, 4" (10.16 cm) base. See DN-60054.
Standard sounder base, steady toneSee DN-60054.
Temporal tone sounder base. See DN-60054.
: Intelligent sounder base, Temporal 3 or Continuous
FlashScan monitor module. See DN-6720.
FlashScan dual monitor module. See DN-6720.
FlashScan two-wire detector monitor module. See DN-
FlashScan miniature monitor module. See DN-6720.
FlashScan releasing control module. See DN-
FlashScan NAC control module. See DN-6724.
FlashScan relay module. See DN-6724.
Manual pull station, addressable. See DN-6726.
FlashScan six-circuit supervised control module. See
FlashScan six-zone interface module; connects intelligent
alarm system to two-wire conventional detection zone.
FlashScan six-relay (Form-C) control module. See DN-
FlashScan ten-input monitor module. See DN-6923.
Standard Network Communications Modules.
Wire and multi-mode fiber versions available.
communications modules. Wire, single-mode fiber, multimode
fiber, and media conversion models are available.
Standard-network repeater board with
wire connection (RPT-W), fiber connection (RPT-F), or allowing
a change in media type between wire and fiber (RPT-WF).
Network Control Station, Wire. UL-Listed
graphics PC with mouse, 19" color flat-screen LCD monitor.
Order as necessary for network systems. Each NCS consumes
Network Control Station, Fiber. UL-Listed
graphics PC with mouse, 19 color flat-screen LCD monitor.
UL-listed graphics PC workstation for standard
NOTI FIRE NET with wire media. Includes NFN Gateway
wire version (NFN-GW-PC-W) and 19" color flat-screen LCD
monitor. Each ONYXWorks workstation consumes one of 103
UL-listed graphics PC workstation for
wire high-speed NOTI FIRE NET. Includes high-speed NFN
Gateway (NFN-GW-PC-HNW) and 19" color flat-screen LCD
DN-7112:D3 1/25/2010 Page 5 of 6
monitor. Each ONYXWorks consumes one of up to 200 network
NOTI FIRE NET with fiber media. Includes NFN Gateway
wire version (NFN-GW-PC-F) and 19" color flat-screen LCD
single-mode-fiber high-speed NOTI FIRE NET. Includes HSNFN
Gateway (NFN-GW-PC-HNSF) and 19" color flat-screen
LCD monitor. Each ONYXWorks consumes one of up to 200
multi-mode-fiber high-speed NOTI FIRE NET. Includes HSNFN
Gateway (NFN-GW-PC-HNMF) and 19" color flat-screen
IPDACT-2/2UD, IPDACT Internet Monitoring Module:
in IPENC enclosure. Connects to primary and secondary DACT
provided ethernet connection. Requires compatible Teldat
VisorALARM Central Station Receiver. Can use DHCP or
External enclosure for IPDACT, includes IPBRKT
mounting bracket; Red. For Black order
Y-adaptor option allow connection of both panel dialer
outputs to one IPDACT-2/2UD cable input.
Direct Panel Interface, specialized modem for extending
serial data links to remotely located FACPs and/or peripherals;
VeriFire Tools CD-ROM. Contains programming
software for the ONYX Series. Includes local panel connection
Batteries. NFS-320 utilizes two 12 volt, 18 to 200
AH batteries. This series of products replaces the previous PS
Battery Box (required for batteries larger than 25
Slave Digital Alarm Communicator. See DN-6619.
Digital Alarm Communicator. See DN-6746.
Backbox for housing the UZC-256. Required for NFS-
320 applications. Black; for red, order BB-UZC-R.
Page 6 of 6 DN-7112:D3 1/25/2010
Intelligent Signaling Line Circuits ......................................... 1
Intelligent detectors ......................................................... 159
Addressable monitor/control modules .............................. 159
Programmable internal hardware and output circuits .......... 4
Programmable software zones ........................................... 99
Special programming zones ............................................... 14
LCD annunciators per CPU-320/-320E .............................. 32
per CPU-320/-320E........................ 32 addresses x 64 points
CPU-320 board: 120 VAC, 50/60 Hz,
CPU-320E board: 220/240 VAC, 50/60 Hz, 1.5 A.
Total output 24 V power: 6.0 A in alarm.
The power supply has a total of 6.0 A of available power.
This is shared by all internal circuits.
Standard notification circuits (4): 1.5 A each.
Resettable regulated 24V power: 1.25 A.
Two non-resettable regulated 24V power outputs:
Non-resettable 5V power: 0.15 A.
Battery charger range: 18 AH 200 AH. Use separate cabinet
NFS-320 cabinet dimensions: Backbox: 18.12 in. (46.025
cm) width; 18.12 in. (46.025 cm) height; 5.81 in. (14.76 cm)
Door: 18.187 in. (46.195 cm) width; 18.40 in. (46.736 cm)
height; 0.75 in. (1.905 cm) depth.
Trim ring: Molding width is 0.905 in. (2.299 cm).
Temperature and Humidity Ranges
This system meets NFPA requirements for operation at 0
49 C/32 120 F and at a relative humidity 93% 2% RH
(noncondensing) at 32 C 2 C (90 F 3 F). However, the
useful life of the system's standby batteries and the electronic
components may be adversely affected by extreme temperature
ranges and humidity. Therefore, it is recommended that
this system and its peripherals be installed in an environment
with a normal room temperature of 15 27 C/60 80 F.
The listings and approvals below apply to the basic NFS-320
control panel. In some cases, certain modules may not be listed
by certain approval agencies, or listing may be in process. Consult
factory for latest listing status.
ULC Listed: file S635 (NFS-320C only, excludes IPDACT)
CSFM: 7170-0028:244; 7165-0028:243
MEA: 128-07-E , FDNY Certificate #6007, #6025
For additional information on UL- and ULC-listed model
The NFS-320 complies with the following UL Standards and
NFPA 72 Fire Alarm Systems requirements:
LOCAL (Automatic, Manual, Waterflow and Sprinkler Supervisory).
AUXILIARY (Automatic, Manual and Waterflow) (requires
REMOTE STATION (Automatic, Manual, Waterflow and
Sprinkler Supervisory) (requires TM-4).
PROPRIETARY (Automatic, Manual, Waterflow and Sprinkler
CENTRAL STATION (Automatic, Manual, Waterflow and
Sprinkler Supervisory) (requires UDACT).
OT, PSDN (Other Technologies, Packet-switched Data Network)
, IntelliQuad , and ONYXWorks are trademarks; and
, FlashScan , NION , NOTIFIER , ONYX , UniNet ,
, and VIEW are registered trademarks of Honeywell International
Microsoft and Windows are registered trademarks of Microsoft
Echelon is a registered trademark of Echelon Corporation.
is a registered trademark of IBM Corporation.
2010 by Honeywell International Inc. All rights reserved. Unauthorized use
of this document is strictly prohibited.
This document is not intended to be used for installation purposes.
We try to keep our product information up-to-date and accurate.
We cannot cover all specific applications or anticipate all requirements.
All specifications are subject to change without notice.
For more information, contact Notifier. Phone: (***) 484-7161, FAX: (***) 484-7118.
