Nsk nakanishi 90° air motor spindle msst-2330RA 0.91"
Nsk Nakanishi 90 Air Motor Spindle MSST-2330RA 0.91"
90 ANGLE AIR MOTOR SPINDLE MSST-2330RA 0.91" (23mm) 30,000 min-1(rpm)
The MSST-23 Series Air Motor Spindles incorporate a specially designed 30,000 min-1(rpm) air motor. The {8,000 and 2,000 min-1(rpm)} versions also utilize a high-precision small planetary gear speed reducer system which provides high
torque, high output power and excellent durability.
This MSST-23 Series motor spindles are designed to be mounted in a 0.91" holder. This greatly extends the capabilities of existing NC and CNC lathes and also makes them very easy to incorporate in the design of special purpose machinery.
MSST-2330RA Air Motor Spindle Collet 1/8" (CHK-3.175) : 1 pc. Collet Nut (K-265) Wrench (8 x 14) : 2 pcs. Hose (K-204) (R type) : 6 ft Hose (K-215) (RA type) : 6 mm x 6 ft Hose (K-216) (RA type) : 8 mm x 3 ft Silencer (K-209) (R type) Silencer (K-208) (RA type)

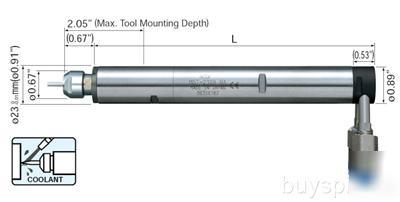

MSST-2330RA Air Motor Spindle Specifications
D = 0.91"( 23 mm) 30,000 min-1(rpm)
