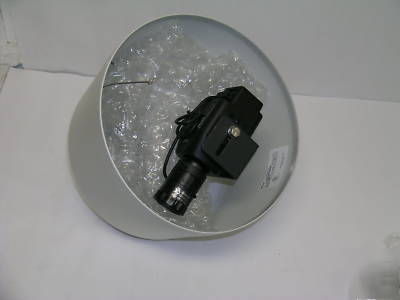

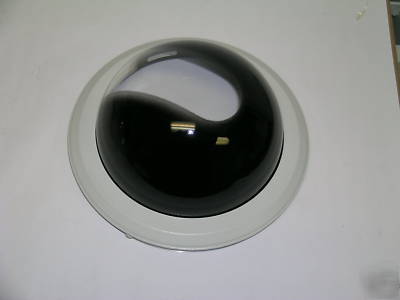

Pelco DF8CL-pg-1V50A color hi camera lens dome back box
Camera, 1/3-inch High resolution LowLight DSS color CCD (480TVL) NTSC, 24 VAC/12VDC,C/CS, DC/Video auto iris, BLC, 00.01lux @ 50IRE, f1.2.
Designed and manufactured in the USA, the CC3751H-2 and CC3651H-2X color cameras have extended digital slow shutter (DSS) settings to enhance the low-light performance of the camera. DSS settings slow the picture frame rate and increase the camera s sensitivity in low light conditions. Light sensitivity increases as the number of fields of integration increase. The cameras have four DSS settings
Four fields of integration maximum (1/15-second update rate)
Fifteen fields of integration maximum (1/4-second update rate)
Thirty fields of integration maximum (1/2-second update rate)
The CC3751H-2 and CC3651H-2X have a 1/3-inch imager and produce a horizontal resolution of 480 TV lines. Special camera settings include electronic shutter control, phase adjustment, enhanced sharpness, long line compensation, backlight compensation, and automatic gain control.
* Compact Body Style, Shorter Overall Than Most Full-Featured CCD Cameras
* Line Lock With Phase Adjustment
* Horizontal Resolution of 480 TV Lines
* For Use with Direct Drive and Auto Iris Lenses or Fixed/Manual Iris Lenses
* Removable Top/Bottom Mount
* Low Profile Mounting Block
* Optional Integral Feedthrough Mount
