Smithy cb-1239 xl lathe-mill-drill

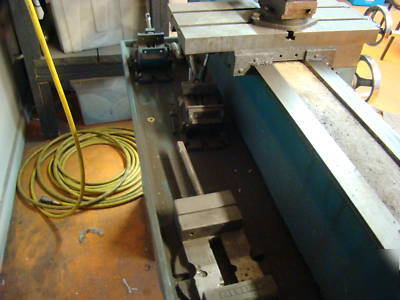

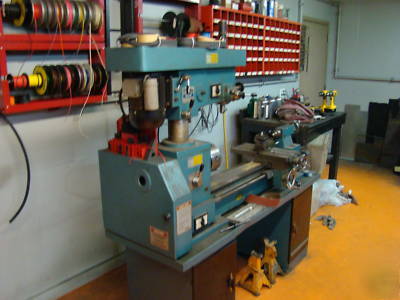

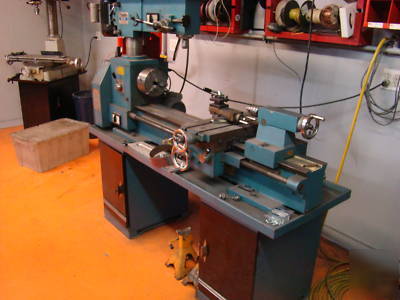

You are looking at a used Smithy
I will be more than happy to send you more photos if necessary, just be specific to what you want to see and I will be happy to shoot and send.
1.2 CB-1239 XL specifications1
67" long x 26" wide x 36" high
Taper Headstock: Morse taper #5
Speeds Lathe: nine (250 -l600 rpm)
Pitches Inch-thread: 20 (11 - 40 tpi)
Hardened, ground dovetail ways
6" three-jaw, self-centering chuck with inside and outside jaws
Millhead taper: Morse taper #3
Spindle nose to table: 4-1/4 - 15"
Spindle to support column: 13"
Drawbars Standard: 3/8 - 16 tpi
Chuck arbor taper: Morse taper #3
Drill chuck to table: 1-1/4-12"
Drill speeds: nine (315 - 2000 rpm)
