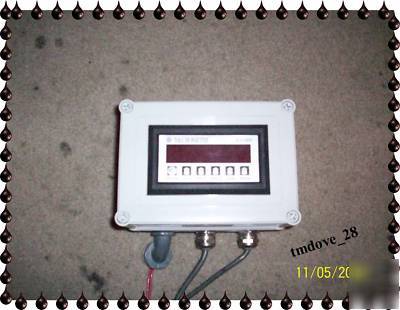

flow computer/ratemeter totalizer
6 digit, .55" high, 7 segment, red orange, LED.
110 VAC 15% or 12 to 24VDC. bCurrent maximum 300mA DC or 8.0 VA at rated AC voltage.
(AC powered units only) + 24VDC @ 50mA regulated 5%
Operating: +41 F (5 C) to +130 F (+54 C). Storage: -40 F (-40 C) to +200 F (93 C).
: EEPROM stores data for ten years if power is lost.
: Front Panel: resets displayed values and control outputs. Remote: 4-30VDC positive edge, resets totalizer and control outputs.
: Standard: Open collector sinks 250mA from 30VDC when active.
Input: Standard: Linear 0-20mA, 4-20mA, 0-5V, 0-10V or 1-5V selectable from the front panel.
The unit does all of the calibrations internally. There are no potentiometers to adjust and the unit never needs to be removed from the case.
Additional spec. sheet will be included with this item.
