Keyence led dual digital fiber optic sensor fs-V21RP
Keyence LED Dual Digital Fiber Optic Sensor FS-V21RP

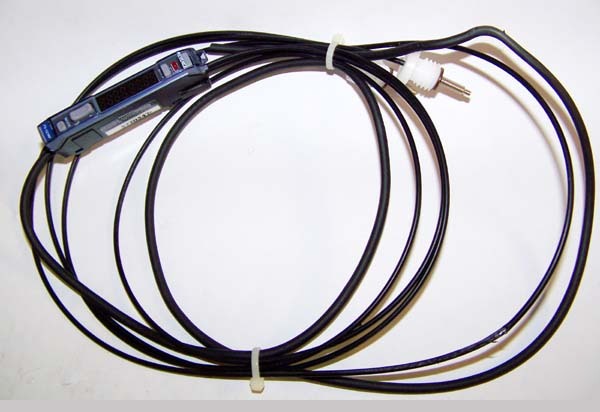

This is a used Keyence Dual Digital Fiber Optic Sensor (Part #: FS-V21RP). This item was received as surplus from a semiconductor company that is no longer in business and has not been tested by us. Cosmetically this item is in fair condition with a scrape on the cable but the sensor head is in great condition. The photos show a typical item for sale. Only what is pictured is included.
* World's Most Powerful Beam (64x conventional Model)
* World's Highest Response speed of 33 s
* World's First Automatic Value Tracking Function
* World's First Power Booster Switch
* Stable Detection over a Long Lifetime
* Response Time: 250 s (FINE)/500 s (TURBO)/1ms (SUPER TURBO)/4ms(ULTRA TURBO)/ 500 s (HIGH RESOLUTION)/50 s (HIGH SPEED)
* Operation Mode: Light-ON/Dark-ON (switch-selectable)
* Detection mode: Light intensity/rising edge/falling edge
* Timer function: Mode:Timer OFF/OFF-delay timer/ON-delay timer/One-shot timer, selectable Variable range:1 to 500ms [1 to 30ms (in 1ms increments), 30 to 50ms (in 2ms increments), 50 to 200ms (in 10ms increments), 200 to 500ms (in 50ms increments)] Accuracy: 10% of the Preset Value
* Control output: NPN or PNP 100 mA max. (40VDC max), Residual voltage : 1Vmax.
* Power supply: 12 to 24VDC 10% , ripple: 10% max.
* Ambient light: Incandescent lamp: 20,000 lux max. , Sunlight: 30,000 lux max.
