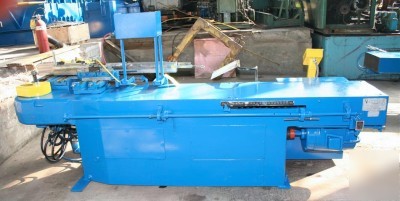

3" pines #2 horizontal tube bender: stock #52602
3" PINES #2 HORIZONTAL TUBE BENDER: STOCK #52602
SERIAL NUMBER ....................... 11235-66007
MODEL ............................... #2
EXTRA HEAVY PIPE IPS ................ 3
NON FERROUS TUBING YP ............... TO 12,000 PSI 3-1/2 X .188
NON FERROUS TUBING YP ............... TO 25,000 PSI 3-1/2 X .120
STEEL TUBING YP ..................... TO 40,000 PSI 3-1/2 TO .083
STEEL BAR ROUND YP .................. TO 40,000 PSI 1-7/8 DIA
MAXIMUM TUBE LENGTH ................. 20'9 OVER MANDREL APPROX
EXTENSION TABLE W/HYD PUSH CYCLE .... 14'2
MAXIMUM RADIUS ...................... 12
BENDING ARM ......................... 17
BENDING ARM SPEEDS .................. 5.5 RPM
HYDRAULIC MANDREL EXTRACTOR ......... YES
(6) BUTTON CONTROL PEDESTAL ......... YES
4-POSITION TURRET DEGREE OF BEND SELECTOR
MOTOR ............................... 7-1/2 HORSEPOWER
