6P31S = EL36 = EL360 = 6CM5 tetrode svetlana lot of 2

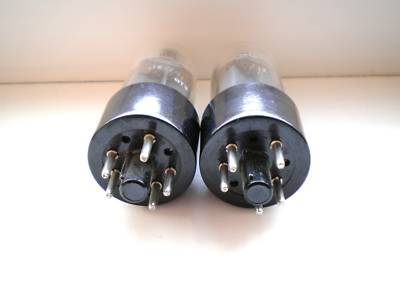

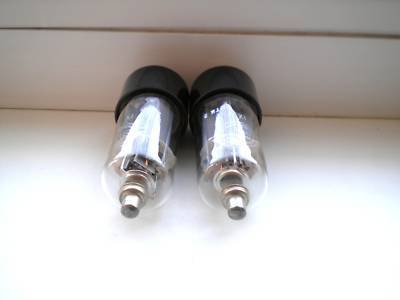

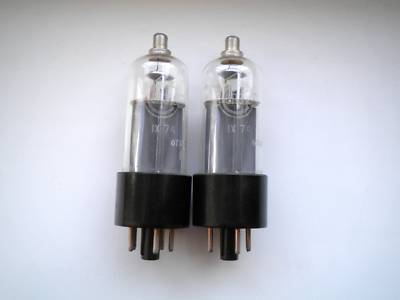

Target beam tetrode 6P31S = EL36 = EL360 = 6CM5.
Made in USSR Russian. Svetlana. Peterburg.
Appointment: work in target cascades of lower case development.
Return current of the first grid, no more than 2 mkA.
Anode current on a horizontal site har (at U =70 In, U 2 = 170 In, U 1 =-1) 450 mA.
Current of the second grid, no more than 8 mA.
- Between the cathode and a heater no more than 100.
- Between the first grid and all other electrodes no more than 20.
- Between the anode and all other electrodes no more than 20.
Characteristic steepness, ma/in 12,5.
Internally resistance, a clod no more than 4 CoM.
Mezhduelektrodnye capacities, pF:
- A checkpoint no more than 1,3.
- The cathode-heater no more than 25.
Durability (at the validity of 90 % in a dynamic mode), more than 700 hours.
