74" x 314" safop combination lathe/grinder

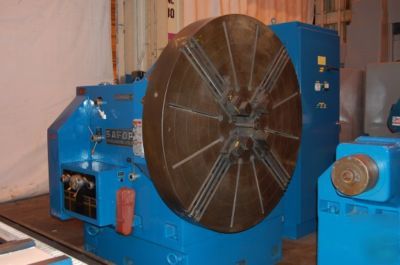

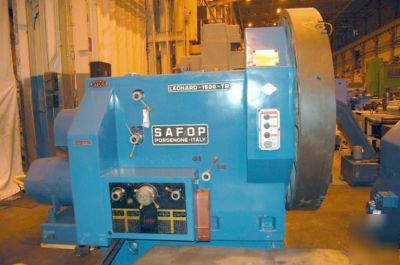

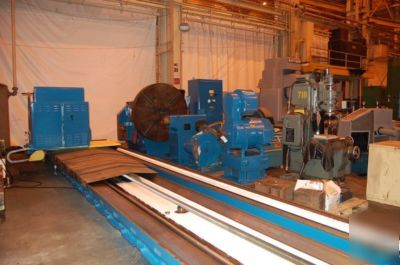

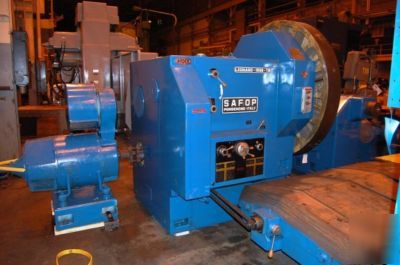

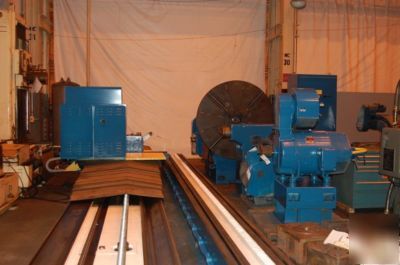

74" x 314" Safop Combination Lathe/Grinder
Maximum Swing Over Bedways ............ 74"
Maximum Swing Over Cross Slide ........ 61"
Distance Between Centers .............. 314.96"
Maximum Swing in Gap .................. 94"
Width of Gap .......................... 16"
Diameter of Spindle Bore .............. 2"
Maximum Grinding Diameter ............. 49"
Spindle Speeds: ....................... .75-155 RPM
Weight Capacity Between Centers ....... 16 Tons
Weight Capacity With Steady Rests ..... 36 Tons (Not Available)
Carriage Power Feeds: Inf. Variable ... 0.05 to 40 IPM
Cross Slide Feeds: Inf. Variable ...... 0.025 to 20 IPM
Swivelling Top Slide Power Feeds ...... 0.025 to 20 IPM
Power Rapid Traverse to Carriage ...... 40 IPM
Power Rapid Traverse to Cross Slide ... 20 IPM
Power Rapid Traverse to Swivel Top .... 20 IPM
Travel of Cross Slide ................. 39.5"
Travel of Swivelling Top Slide ........ 17.5"
Travel of Compound Rest ............... 11"
Grinding Head Motor ................... 20 HP AC
Grinding Wheel Diameter ............... 24"
Grinding Wheel Width .................. 2"
Grinding Wheel Speeds ................. 500 to 2500 RPM
* Grinding Attachment is Easily & Quickly Interchangeable
with the Swivelling Top Slide of the Lathe
6-Way Power Rapid Traverse On Carriage
4-Way Bed Construction, Carriage to Pass Tailstock
Power Rapid Traverse On Tailstock
Heat Compensation For Tailstock Spindle
Power Tailstock Quill, 2-Speeds
Anti-Friction Replacable Carrige Way Liners
Hydraulic Tailstock Pressure Lock
20 HP DC Spindle Drive for Grinding Operations

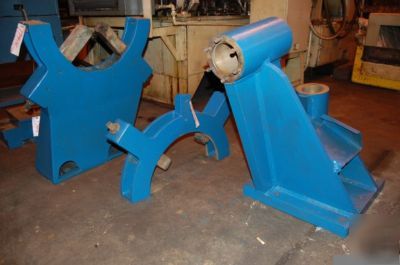

* Tailstock & Steady Rests On Back Two Ways.
Carriage On The Front Two Ways.
