Chem feed c-6125P diaphragm metering pump 115V 30PSI

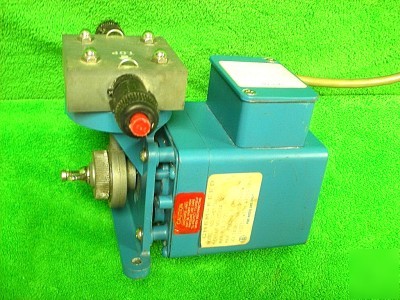

CHEM FEED C-6125P DIAPHRAGM METERING PUMP 115V 30PSI
This listing is for 1 used pump in good physical general condition with only some minor cosmetic wear, as seen. Although we have pluged this in and it does not run. We do not know any of the previous history on this. The Internet refers to service replacement parts using the newer model number C600-P parts which are suppose to be readily available to repair this from the manufacture directly on line or through other suppliers. So we are selling this for repair or parts use only. Chem-Feed series C600-P. Model C-6125P. 115VAC. 30PSIG Max. Don't miss your chance to own this item now!
Easy access, side mounted mechanical output rate adjustment.
Double-ball inlet and outlet cartridge type ceramic check valves.
PVDF valve body and fitting, ceramic balls, Viton and TFE/P o-rings.
Superior pump head design of precision molded polypropylene.
All ball bearing, permanently lubricated gear motor for smooth, powerful operation.
Polypropylene injection check valve with Viton and TFE/P o-rings and
spring loaded ceramic ball seal.
PVDF suction (foot) valve with Viton and TFE/P o-rings, ceramic check ball
and removable polypropylene filter screen.
Includes 3/8 OD suction and discharge tubing, and all mounting hardware.
Efficient, dependable design - each unit is factory tested.
Private labeling for volume purchasers.
Max. Working Pressure ... 125 psig (8.6 bar)
Max. Fluid Temperature .. 130o F (54o C)
Ambient Temp Range ...... 14o to 110oF (-10o to 43o C)
Max. Viscosity ...................1000 Centepoise
Max. Suction Lift ...............10 ft. water
Output accuracy ................ /- 10% of max. (water 0 psi, 5 suction lift)
Turndown ratio .................. 27:1 Standard models
Amperage Draw ................. 115V/60Hz .....starting .74 / running .45
Dimensions ........................ 6-1/2 H x 6-5/8 W x 5-3/8 D
