Continental hydraulic power unit PRV6-6B pump 6 gpm

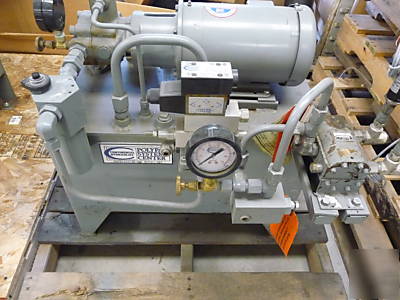

Continental Hydraulic Power Unit - Polypac Systems Center
ID Number 9103326 YR7011 5/91, 10 gallon oil resevoir, level indicator, 1 hp 3 phase 208-230/460 VAC, 1000 psi pressure gauge, mfr's spec sheet is at: http:// /UserFiles/File/productPDF/Power%20Units/NFPA-JIC%20Catalog.pdf
* Schroeder Filter NF301N10SD5, series A, 3000 psi rating, Element N10, Bypass Valve 40
* Pump PRV6-6B06-RF-0-1-F, 1800 rpm, 14 ml/rev, 6 GPM, 600 psi, pdf is at :http:// /UserFiles/File/productPDF/PumpVanePVR.pdf
* max pump pressure rating 2000 psi
* Flow Control Valve with check model number N5W-NDC-G-S-B
* Check Valve C5S-DP-4-G-S-E
* Directional Control Valve VS5M-1A-GB-60L-J with Solenoid 120/110VAC 60 50 HZ, 21 Watts
* Flow Splitter - John S Barnes model 1300634
* 2 pieces 4-20 mA analog Pressure Transducers on Flow Splitter discharges 405H2-10CG-11-L, pressure range 0-1000 psig 2000 psig proof pressure,12-67 vdc supply
I might consider parting this unit out if you are interested in specific components. The part price will have to be reasonable though.
