New professional ultrasonic thickness gage + test block
Professional and Economical Ultrasonic Thickness Gauge
Reads in both mm and inch with 0.1mm display resolution
Compact Design with Comfortable and Durable Structure
~~ with 4-step Calibration Block (used, in mm) for calibration/checking ~~
or, change to an 5-level chromed block (brand new, in inch) at $20.00 extra

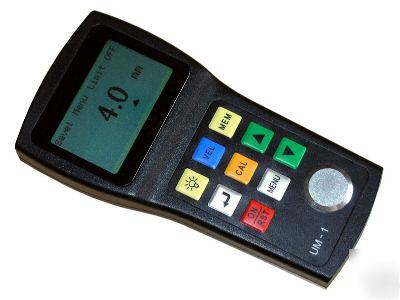

UM-1 is a simple to use, high accuracy, hand-held Ultrasonic Thickness Gauge. It uses the most advanced microprocessor and ultrasonic technology to offer users many outstanding features. It features reliable, repeatable and stable reading, high accuracy (0.05 mm or 0.002 inch), high resolution and convenient data display (in both millimeter and inch). It also provides ease of operation, wide measuring range, continuous change for sound speed adjustment, and low power consumption (runs > 200 hrs with 2 normal AA batteries). These features make UM-1 unequalled in its performance as well as its value!
UM-1 is manufactured under the strict quality control guidelines established by ISO 9001: 2000 Standards. Its quality is insured by our return policy and full-coverage warranty.
Well Made, Well Shaped, Well Performed and Well Priced - The Best Price in the Market
~~ 14 days Money Back Gaurantee ~~
if you are not satisfied with our products
(Please order our new model DW-1 if you do need download test results to PC)
1. UM-1 Main Unit with built-in Calibration Block (4.0 mm)
2. Standard Probe - 5P-10 (Straight) or PT-08 (90 Degree angle)
3. Coupling Paste (EMPTY bottle will be included for the coupling paste - kind of engine oil, to avoid the leaking of the oil during transportation)
4. Operation Manual in English
5. Consumer-Type 2 AA Type Alkaline Battery (3 Volt)
6. Foam-Fitted Carrying Case to provide the best protection for the gauge
7. 4-Step Calibration Block (in mm), or change to 5 level brand new chromed block in inch at $20.00 extra
* Metal Materials: Al, Fe, Stainless Steel, Cu, Brass, Zn, Ag, Au, Sn,....
* Acrylic Resin, Water Glass, ...
* Other materials with known sound velocity values.
Measuring method: Ultrasonic pulse echo
Measuring range: 0.8 - 220.0 mm or 0.031 - 8.66 inch
Display Resolution: 0.002 inch (or 0.1 mm)
Sound Velocity Range: 1,000 - 9,999 m/s - adjustable by 1 m/s interval
Memory capacity: Store up to 500 test values
4 digital LCD display with advanced backlight
Automatic power-off after being idle for 4 minutes
Two Points Calibration available
Power Supply: 2 X 1.5V AA Standard Batteries
Working temperature: -0 C ~ +50 C
Dimension: 149 mm X 73 mm X 32 mm
Weight: 168g (main unit); 30g (probe)
5P-10 (Straight probe) included in the package as standard probe
Or, PT-08 (90 degree angle probe) to REPLACE 5P-10 at no extra cost
INCLUDED 4-Step Thickness Calibration Block (in mm) with some marker at side surface
Or, REPLACE above block with this Chormed 5 Level block (brand new, in inch) with $20.00 extra.
Optional Rubber Protective Case at an extra cost of US $39.00
* Canadian residents pay 5% GST, Ontario residents pay 5%GST + 8%PST.
