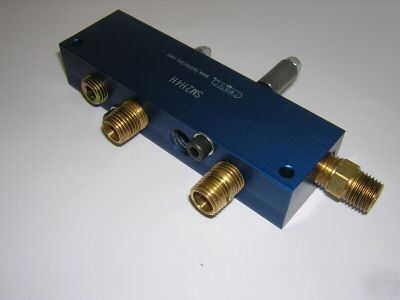

Lot (5) 300 psi 1/4" npt six-port twintec air manifold
These parts are new, removed from never-used assemblies manufactured for Northrup-Grumman Aerospace.
Manufacturer: TwinTec (see )

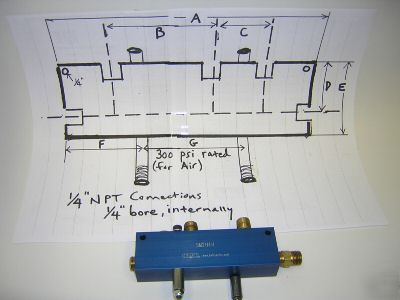

Dimensional Data (Legends A,B,C,D,E,F & G shown in picture above)
A(Length)= 5",E(Width)=1-1/2", Height (not shown)=1"
Ports:4 Ports (female) are centered at 1",2",3" & 4" (not shown correctly on drawing), (2) side ports D=1"
Mounting Bolts are centered at F= 1-1/2", G= 2", (there are also two 1/4" thru-mounting holes from top-to-bottom)
Internal boring is 1/4" O.D., connecting all ports internally.
(7) lots of (5) manifolds are available for sale.
