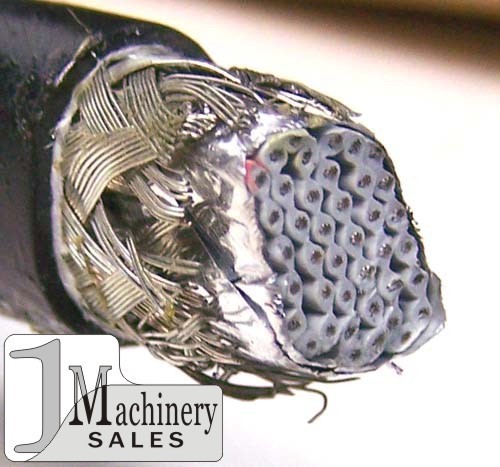

New 100 ft. 3M? round, jacketed, flat cable, 3659/40,
New 100 ft. 3M? Round, Jacketed, Flat Cable, 3659/40,
.050? 28 AWG Stranded, Mass Terminatable, PVC/PVC
3M? Round, Shielded/Jacketed, Flat Cable
? Round construction permits easier routing
? 28 AWG wire on .050 inch pitch permits mass termination to broad line of IDC connectors
? Continuous split/bond repeat allows for mass termination on 2.4 inch centers (approximate)
? Primary cable is zippable for branching or discrete terminations
? Meets external wiring requirements of National Electrical Code, Article 725 (CL2)
? UL listed for USA and Canadian markets
? Dual shielding provides 35 db average shielding effectiveness
Voltage Rating: USA: N.E.C. 725, CL2 or AWM; 300V Canada: 300V EU: <50V
Insulation Resistance: > 1 ? 1010 O/10 ft. [ 3m ]
Characteristic Impedance: 62 O 106 O
Capacitance: 27.7 pF/ft [ 90.88 pF/m ] 15.2 pF/ft [ 49.9 pF/m ]
Inductance: 0.11 ?H/ft [ 0.35 ?H/m ] 0.17 ??/ft [ 0.57 ??/m ]
Propagation Delay: 1.72 ns/ft [ 5.64 ns/m ] 1.62 ns/ft [ 5.31 ns/m ]
Velocity of Propagation: 59% 62%
http://multimedia.3m.com/mws/mediawebserver?66666UuZjcFSLXTt4Xf6Nxs6EVuQEcuZgVs6EVs6E666666-
Overall Dimensions 10.5 x 10.5 x 11.5 in
