New asco redhat 8210G001 2 way solenoid valve hvac

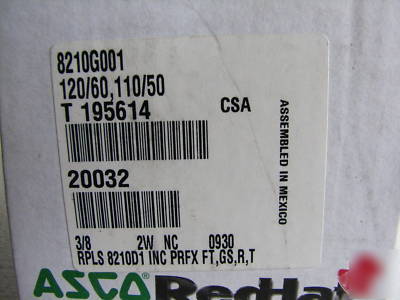

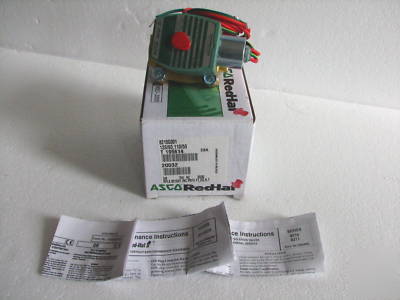

Being offered is a New in Box never installed 3/8" 8210G001 Asco 2-Way Solenoid Valve - 120V/60Hz (20032) with instructions.
ASCO Red Hat general purpose 2-way normally closed solenoid valves will provide On/Off control of air, inert gas, water, light oil (300SSU) and other clean flowing media compatible with the materials of construction. This valve has one inlet and one outlet and does not pass fluid until the coil is energized. Used in a variety of applications including: automated systems, dispensing systems, welding equipment, restaurant equipment, food processing machinery, water treatment systems and laundry equipment.
Type: 2-Way Normally Closed (energize to open)
Pipe Size: 3/8" NPT, 5/8" Orifice, Cv 3.0
Construction: Brass Body, NBR (buna-n) seals, other materials include PA (nylon), stainless steel 305, 430F, 302, and a copper shading coil
Pressure (Min-Max): 5-200 PSI (air), 5-150 PSI (water), 5-135 PSI (light oil)
Flow Rate (Min-Max): 7-37 GPM (water), 27-385 SCFM (air)
Coil Type: General purpose/watertight, dusttight, corrosion resistant
Enclosure Rating: Type 1, 2, 3, 3S, 4 & 4X

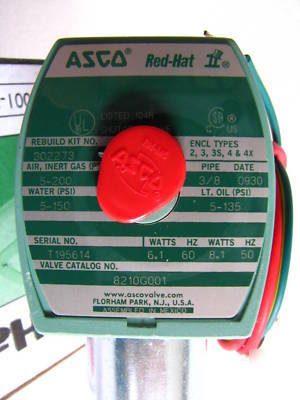

Coil Rating: 120/60 VAC, 6.1 watts, class F continuous duty service
Coil Termination: 1/2" Conduit Hub with 18" lead wires
Agency Approvals: UL Listed, CSA certified, CE
Media Temperature: 180 F maximum
Ambient Temperature: 32-125 F nominal (minimum 0 F where freezing water is not a factor
