New opticon H16A smart phone kit laser scanner
Product New Sealed in Box, with Full Factory Warranty

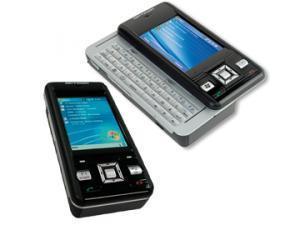

Opticon H16A Smart Phone Kit Laser Scanner NEW
Convergence for Mobile Business
The slide-out QWERTY keyboard provides fast and easy text input and quickly hides away when not required. The
2.8-inch, color touch-screen LCD includes the ability to instantly rotate the screen layout when your applications
Specifications: H16A Smartphone
Main battery pack: Rechargeable Lithium Ion Polymer 4.2 V 1440 mAh
Main battery pack operating time: Talk time 4 hours, standby time 150 h
Battery charging time: 4 hours (full charge)
Light source: 650 nm visible laser diode
Reading pitch angle: -35 to 0 , 0 to +35
Reading skew angle: -50 to -8 , +8 to +50
Reading tilt angle: -20 to 0 , 0 to +20
Curvature: R>15 (EAN8), R>20 (EAN13)
Min. Resolution at PCS 0.9: 0.127 mm / 5 mil
Depth of field: at PCS 0.9, Code 39
65 - 645 mm / 2.56 - 25.39 in (res. 1.0 mm / 39 mil),
45 - 415 mm / 1.77 - 16.34 in (res. 0.5 mm / 20 mil),
45 - 255 mm / 1.77 - 10.04 in (res. 0.25 mm / 10 mil)
45 - 145 mm / 1.77 - 5.71 in (res. 0.15 mm / 6 mil),
55 - 115 mm / 2.17 - 4.52 in (res. 0.127 mm / 5 mil)
Supported barcode symbologies (1D): JAN/UPC/EAN (WPC) incl. add on,
Chinese Post, NW-7/Codabar, Code 11, Code 39, Code 93, Code 128, IATA,
ndustrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Korean Postal Authority
code, Matrix 2of5, MSI/Plessey-UK/Plessey, RSS, S-Code, Telepen, Tri-Optic,
Supported 2D code symbologies: MicroPDF417, PDF417
Available interfaces: Mini SDIO card slot, mini USB (client, ver 1.1)
Interface W-LAN: WiFi, IEEE.802.11b/g
Interface GSM/GPRS: Quad-band 850/900/1800/1900, GSM Class 12, EDGE
Microprocessor: Samsung S3C2440A 400Mhz
Display: 2.8 in Transflective TFT LCD with backlight, 240 x 320 pixels, 16-bit color
Indicators: 2 LEDS (red/orange/green/blue), speaker, vibrate
Input devices: Touch panel with stylus, 41 keys QWERTY keyboard, virtual
keyboard, handwriting recognition, 5-way direction keys, 2 scan buttons, hot keys,
Programming: Pre-loaded software: Excel Mobile, Powerpoint Mobile, Word
Mobile, Internet Explorer, ActiveSync, Internet sharing, Pocket MSN, Phone
application, Opticon Scanner application, Accessories
Dimensions: 60 x 127 x 28 mm / 2.36 x 5.00 x 1.10 in
Weight body: Ca. 180 g / 6.3 oz (excl. battery)
Laser safety class: JIS-C-6802 Class 1, IEC 60
Product compliance: CE, FCC, VCCI, ROHS
AC adapter, Ear microphone, USB cable (client to host), Leather
case, Lithium-Ion Polymer battery, Getting Started disc, Stylus
Accessories: Car charging adapter, Car mount holder
