New topcon rl-100 1S-l rotating slope laser outfit

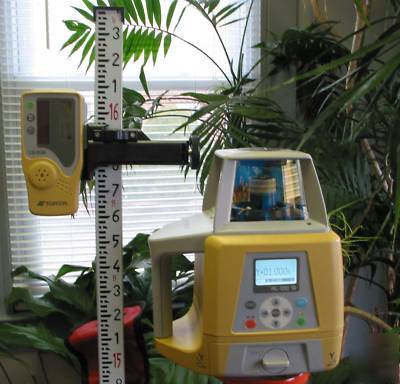

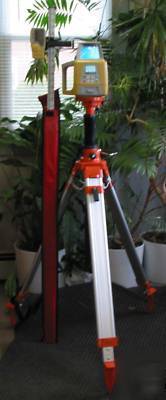

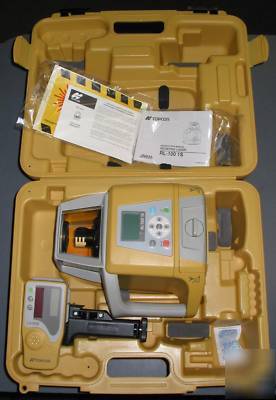

New Topcon RL-100 1S Single Grade Laser Level Kit
The new Topcon RL-100 slope laser series offers advanced slope capability and functions at an affordable price. As with all Topcon instruments, the RL-100 is built to the highest standards in both ruggedness and accuracy. Using a survey quality encoder system, the RL-100 1S has an accuracy of 10 seconds (1/16" @ 100 Ft) and can produce up to 25% grade, without tilting the laser.
RL-100 1S features include a fully mechanical self-leveling and a waterproof housing. Just push the green ON button and the self-leveling motors take over. An out-of-level alert stops the unit when disturbed. The unit also features 3 quadrant masking, 300/600/900 rpm speeds, HI alert at the sensor & laser, and vibration sensitivity selector.
* 1/16" at 100 foot accuracy
* 2600 foot/ 800 m diameter range
* High RPM operates most machine control receivers
* Two year warranty on laser
* 3 sided masking to avoid on site interference with other lasers
* Runs 85 hours on 4 D alkaline batteries
* Detector averages 3 months on 2 AA batteries - 120 hour continous
