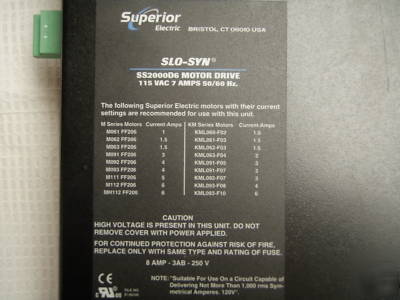

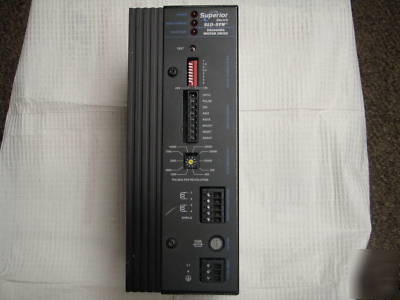

Superior slo-syn SS2000D6 motor drive 7 amp slo syn
Tested good,have you seen my other items?
Superior Electric Danahar Slo Syn Motor DRIVE 1-6AMP 50000PULSE/REV
The SLO-SYN SS2000D6 Series of bi-polar, packaged drives
delivers long-lasting, dependable performance for a wide range
of multi-axis and stand-alone applications. SS2000D6 packaged
drives provide a highly flexible range of 200 full steps to 50,000
micro-steps per revolution for incredibly smooth, low-speed operation.
Each SS2000D6 model features single AC input along with its
own built-in power supply to help conserve on space and dollars.
The line-operated-high-voltage DC bus (180V) provides high-speed,
high-torque motor performance. SS2000D6 packaged drives also are
designed with switch-selectable current control from 1 to 6 amps which
eliminates the need for a current sense resistor while facilitating simple
drive-to-motor matching. The combined use of MOSFET technology,
IGBT devices, and a rugged aluminum enclosure with built-in heat sink
minimizes heat generation while greatly enhancing the performance and
lifespan of your unit. In fact, product longevity doubles with every 10 F
reduction in operating temperature.
* Switch selection of full/half-steps or microstep resolution
up to 50,000 pulses/rev.
* Switch selectable motor current from 1 through 6 amperes for
the SS2000D6,, 0.5 through 3 amperes for the SS2000D3

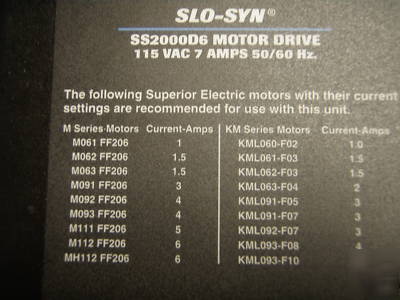

* SS2000D3 operates KML061-KML093 motors
* SS2000D6 operates KML091-KML113 motors
* "Bullet-proof", fully protected design
* 120 VAC input, 170 VDC bus voltage
* UL Recognized for use in US and Canada
* Latched short circuit protection (phase-to-phase and phase-to-ground)
* Unlatched under voltage & transient over voltage protection
* Optically isolated inputs
* Boost Current, Reduce Current & Windings of functions
* Built-in AC line filter plus MOV
