2 energy concept function generator 40600 multimeter
2 ENERGY CONCEPT INC. FUNCTION GENERATOR 40600 MULTIMETER 50200

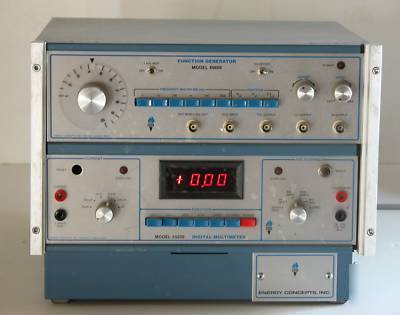

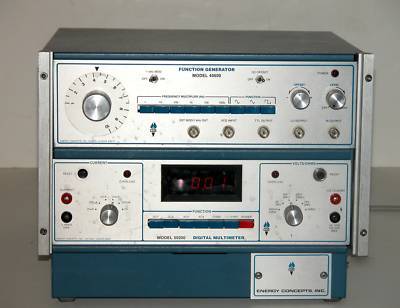

This is a combination of Energy Concepts Inc. Function Generator Model 40600 and a Digital Multimeter Model 50200. They both power up and appear to work as designed
The LED reads and changes with changes in settings.
An extremely versatile generator equipped with the necessary functions and operational features to satisfy a variety of applications.
Sine, Square and Triangle outputs with variable amplitude.
Outputs and functions are dynamically protected against reverse voltage.
1 kHz internal modulation signal.
Output can be modulated by an external signal source.
Hi Output: 0-20 V p-p, Open Circuit: 0-10 V p-p into 75 Ohms.
Lo Output: 0-2 V p-p, Open Circuit: 0-1 V p-p into 75 Ohms.
This easy-to-operate and versatile instrument is designed for educational and industrial applications.
Large 3 1/2 Digit, 7-Segment LED Display.
Broadband RMS accurate measurement of AC signals.
Auto polarity, decimal, zero, and over-range indication.
High-input impedance on all ranges never loads the circuit.
Voltage, current, and resistance have separate inputs that can be simultaneously connected.
Easy function selection with pushbutton switch for current, voltage, or Ohms measurement.
