6" x 12" okamoto hand-fd horiz-spdl surf grinder #25816

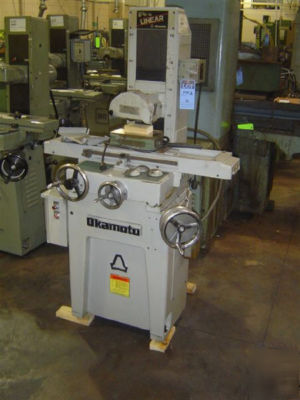

6" x 12" OKAMOTO "6-12/14 LINEAR" HAND-FEED
New 1987, Serial No 2047U, Model PFG612,
5" x 10" Hanchett Magna-Lock Electro-Magnetic Chuck
Table Working Surface, W x L................ 6.2" x 14"
Grinding Width Capacity, Maximum............ 7.5"
Grinding Length Capacity, Maximum........... 14"
Height Table to Standard Wheel.............. 14"
Table Longitudinal, Manual.................. 15"
Table Cross Travel.......................... 8"
Grinding Wheel Diameter, Standard........... 8"
Grinding Wheel Width, Standard.............. 0.75"
Grinding Spindle Speed...................... 8000 SFPM
Grinding Wheel Spindle Motor................ 2 HP
Weight, Approximately....................... 1650 LBS
