Eaton char lynn hydraulic steering torque generator

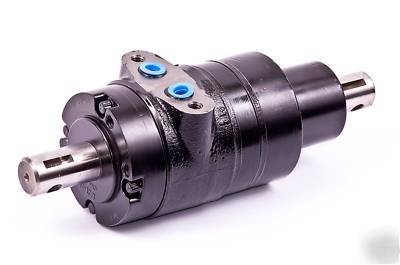

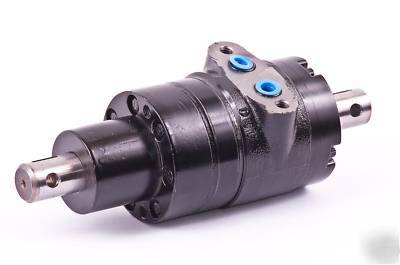

This is a fully reconditioned and tested 207-1005-001 torque generator as found on many tractors, sand buggies, and anything else you would want to add power assist to. It is also the same in size and performance as the older "S101" prefix part numbers as well as the newer 207-1015-001. Guaranteed against all defects for one year by steering control professional in the business for over 20 years. Has the following specifications:
* 700 in. lbs. of torque output
* 3.5 gpm maximum required flow
* 7/8" OD shafts at each end with woodruff key slot and 5/16" pinhole
* 4.52" between mounting faces
* 9.14" overall length including shafts

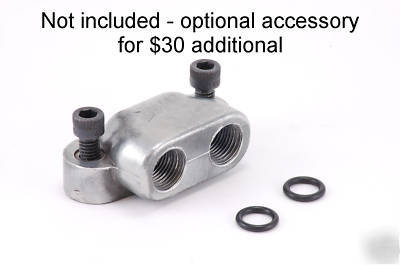

* manifold ports - requires port block adapter
