Freezer packaged food ice cream (2) dispensing shelves

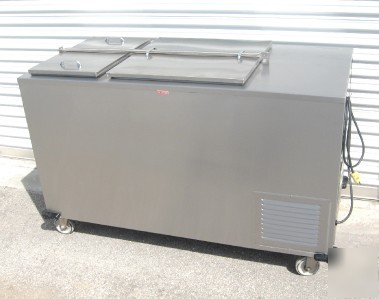

MOBILE SELF LEVELLER PACKAGED GOODS / ICE CREAM FREEZER COLD WALLS
MOBILE SELF CONTAINED PACKAGED ICE CREAM FREEZER DISPENSER
FEATURES:FRAME AND BODY: The frame is constructed of all welded heavy gauge stainless steel. The exterior sides are 18 ga. stainless steel and the top is 16 ga. stainless steel. The interior liner is all welded 22 ga. stainless steel, watertight and fitted with a 1/2" I.P.S. chrome plated bronze drain trap at the bottom. The liner is separated from the top by full perimeter breaker strips. The entire cabinet is insulated with 2-1/2" thick poured-in-place polyurethane. Equipped with removable stainless steel plug type insulated covers with perimeter gaskets and handles. MECHANICAL REFRIGERATION: The cabinet is refrigerated to maintain a temperature of 0?F to -10?F, by means of a self-contained evaporative system composed of a built-in four-wall, copper refrigerant coil which is connected to 120V, single phase, fan cooled, hermetically sealed condensing unit. The condensing unit is housed within the cabinet with slotted access panels for ventilation. A 6' long three wire cord set with a NEMA 5-15P plug is provided. DISPENSING MECHANISM: The cabinet is fitted with one or more removable self-leveling dispensers, each consisting of an all welded 16 ga. stainless steel frame and a 14 ga. stainless steel pan-type carrier for the product. The frame and carrier are connected by a suspension system consisting of a series of stainless steel coil springs and ball bearing guides designed to keep the carrier level at all times. Adjustment of the dispensing height for varying weights is accomplished by engaging or disengaging individual springs. Both models include aluminum trays which function as separators for layers of ice cream. FEET, CASTERS AND BUMPERS: Mounted on 4" diameter extra heavy duty, double ball bearing swivel casters With vinyl corner bumpers. DESCRIPTION: Overall Dimensions: 59 W. x 28 D. x 39 H. on 5 Casters Freezer Bins:
http://www.piperonline.net/media/specs08/A-8.pdf CONDITION / ORIGIN: VERY NICE AS NEW PERFECT WORKING CONDITION
