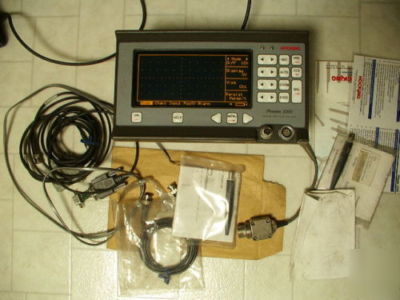

Hocking phasec 2200 eddy current flaw detector ndt
The innovative design of the Phasec 2200 puts a high technology Eddy Current instrument inside an ultralight, splashproof case that has the ruggedness to perform reliably in the harshest environments. It has the benefit of a large Electroluminescent display to reduce eyestrain, comprehensive battery management, extensive contextsensitive help screens and advanced user functions.
The Phasec 2200 includes all the functions needed to enable you to achieve accurate, reliable and repeatable test results. It minimises operator fatigue by being both the lightest available unit of its kind, and by automating many repetitive operations.
Comprehensive EddyCurrent Features
The dual channel, dual frequency, Phasec 2200 offers a full range of capabilities for the NDT operator:
Wide choice of alarms - Box Gate, Circular/Sector Gate, flashing LED s, audible alarm and open collector output
Supports the range of Hocking rotating drives for dynamic inspection (see Accessories and Enhancements)
Conductivity of non-ferrous metals plus coating thickness measurements in conjunction with a conductivity probe
Comprehensive reporting features: Storage of data and traces within the instrument, and export to a PC. Choice of full alphanumeric names for these files
With the appropriate probe, the Phasec 2200 measures the conductivity of non-ferrous metals over the full range of 1% to 110% IACS or 0.4-64 MS/m. A readout of coating thickness to 1.25mm is also displayed
The Phasec 2200 gives high sensitivity surface inspection using all standard absolute and differential probes. The built in balance loads and wide probe matching ensure compatibility with other manufacturers application - specific probes.
With ID probes the Phasec 2200 can perform a range of tube inspection tasks.
