Hybco 1900 tool & cutter grinder, 2100SB fixture, preci

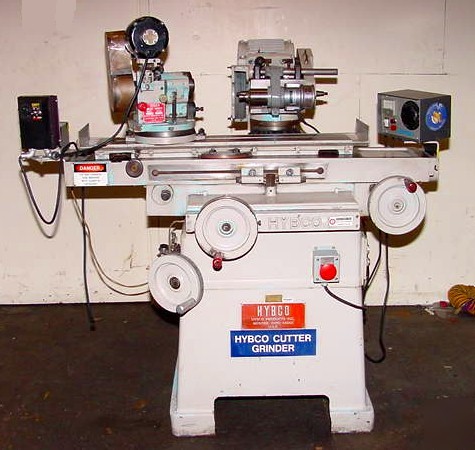

Hybco 1900 TOOL & CUTTER GRINDER, 2100SB Fixture, Preci
Hybco 1900 TOOL & CUTTER GRINDER, 2100SB Fixture, Precise I.D. Spdl.,
Hybco "Precision" Form Relieving Grinder
Model No.: 1900 Machine S/N: TG-531 New: 1988
Table Working Surface: 6" x 36"
Grinding Spindle Vertical Travel: 7-1/4"
Grinding Spindle Rotation: 360 Degrees
either side of Horizontal: 25 Degrees
Grinding Spindle Speeds: 3800 & 6400 RPM
Grinding Spinele Motor: 1.5 HP, 230/460/3/60, 3430 rpm
Grinding Wheel Max. Diameter: 7"
Model 2100 SB Two-Way Relieving Fixture w/Swivel Base
Standard Collet Capacity: 1-1/16" thru Spindle
Wheelhead Infeed Movement Provided by a BALL SCREW
W/Anti-Backlash Double Nut. Handwheel is Graduated
Longitudinal Table Feed is Provided by Rack & Pinion
with Auxilary Lever for Short Stroke Work. Handwheel
is Graduated in .0005" Divisions.
Preloaded Cross Roller Bearing on Wheelhead and
Hybco #2100-SB (S/N: RF-1269) Motorized Universal Two-Way
"Dart Controls Inc." Model #250 Infinitely Variable
Speed Controller for the Relieving Fixture
.... Toggle Switches for Forward & Reverse
and On & Off Selections as Well as the Rheostat Control
"Precise" Infintely Variable High-Speed (Up to 45,000 RPM)
"Precise" Electronic Spindle Controller Providing Infinitely
3/60/230-460 Volt Spindle Motor
