405NM violet laser diode driver kit high power 1.5AMP
This is a NEW Driver Component Kit. One (1) set.
* All new parts (one set of components)1.5 AMP , high current version of our popular 100 mA driver kit.
* Great for driving our 65 mW blue violet laser diodes, and other diodes needing high current.
* Drives a Constant Current up to and likely over 1.5 A with (now) INCLUDED heat sink.
* Adjustable, 1 Turn Pot included.
* 9 Volt Input, battery clip included.
* ~ 5 Volt Output- the higher voltage 405 nm diodes. Also works with other diodes that operate around 2 volts, in that case the input voltage can be less.
* Reverse polarity protected with second diode, included

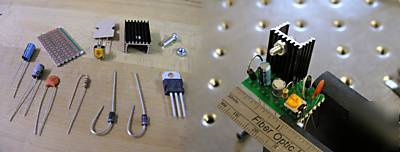

* Includes hook up schematic, pin- out instructions, small circuit board for soldering/ hand wiring. Kit only, right side of photo is completed unit- for example only. Items Not soldered when you get it: PARTS/ Components ONLY.
Look above, under 'Meet the Seller' to see our other listed items
We Sell You Tomorrow's Lasers Today...
Great for Prototyping High Power Blue Violet Laser Modules. Everything is inluded, just add 9 volt battery, and laser diode (not included). Soldering required. Most of our items include a 100% return policy. Sorry, on this, due to soldering required for use, and it's a kit- no returns. We will be happy to support you on assembly. This is not a printed circuit board- one must run wires on the back, or bend pins over to make connections between components.
