Ats 11" 4TH axis rotary table, rt-275; smv ac

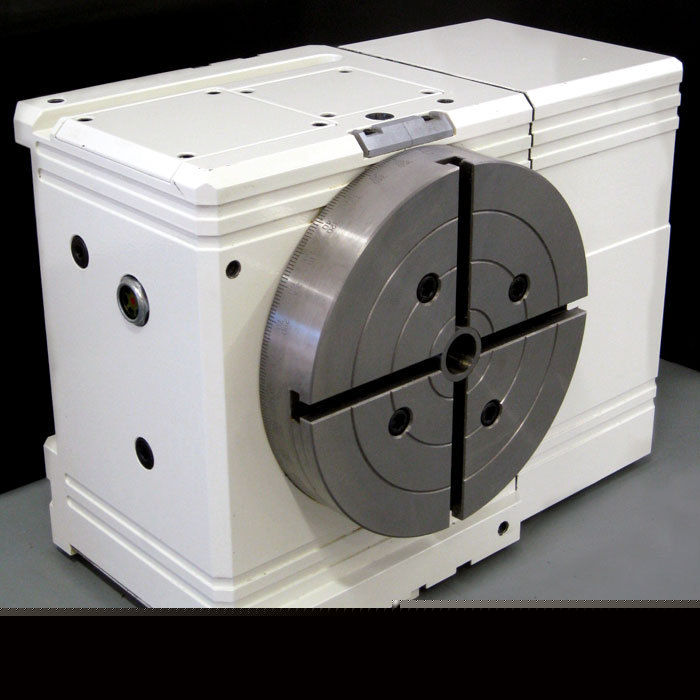

NEW! 11" 4th Axis Rotary Table
A fourth axis of motion for your vertical machining center. High precision, rigid, wormgear rotary tables driven by an electric servo control deliver 360,000 angular positions (0.001 ) and rotary cutting. Heavy duty construction for rigid, accurate, reliable long life. Two SKF P4-class roller spindle bearings (11 RT 275 and larger)
Large diameter pneumatic disk spinde brake gives maximum holding power.
Hardened steel precision ground wormscrew with ABEC-7 super precision bearings.
Super sealed to keep oil and coolant out.
IP-67 Submersible-rated, molded cables with steel mesh abrasion protection.
A-type spindle nose for easy mounting of workholding options.
Click here for online brochure
New! Never been used. Box opened only for photos!
* PACKAGE DIMENSIONS: 24" x 25" x 18"H (inches) approximate.
* PACKAGE WEIGHT: 450 lbs. approximate.
