Ge inspection CL5 ultrasonic digital thickness gauge

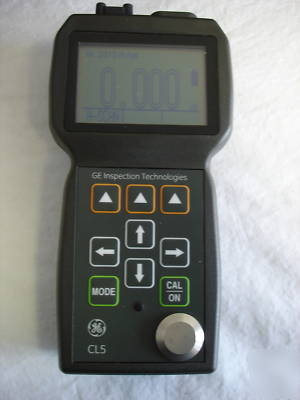

Ultrasonic Digital Thickness Gauge Model# CL5
The CL5 precision thickness gage offers a full range of functionality in an easy-to-use, compact and rugged package.
The CL5 is used for precise thickness measurements of metal and plastic components whose complex geometry often makes them difficult to inspect with conventional gages.
The CL5 is able to display the ultrasonic response in real-time by using the optional live A-scan to properly align the transducer and verify the accuracy of the test as components become more complex in shape.
Enhanced measurement performance resulting in highly stable and repeatable readings
Snapshot A-Scan on all models for probe alignment and data control
Rugged housing, environmentally sealed to be used almost everywhere
Flexible power supply with 3 standard AA batteries or one-Lithium-Poly battery pack (rechargeable in the instrument)
Operating temperature range from -10 C up to 60 C
Hollow / Filled thickness digits indicating coupling status
Visual LED alarm for High and Low limit
Multi-language user interface
Automatic control of ultrasonic parameters (gain and gate controls)
Six different measurement and display modes for application specific operation
Wide variety of contact and delay line probes
Optional Live A-Scan and Programmable Data Recorder with SD memory card (inlcuded)
Optional velocity mode for sound velocity determination

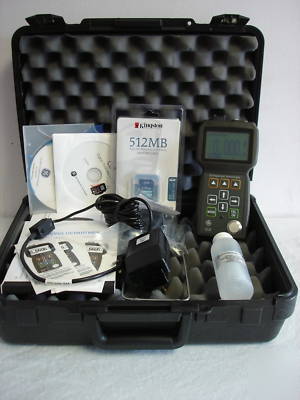

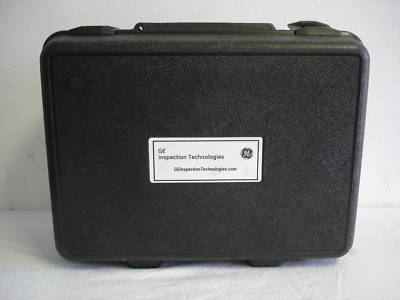

Includes: CL5, Carrying Case, Power Adapter, Operating Manual, Stand, BRAND NEW 512 MB SD Memory Card, Software CD, Upgrade 1.20, and Ultrasonic Couplant
Excellent Physical condition, Working, Unit powers on, appears to be NEW, see actual photos.
