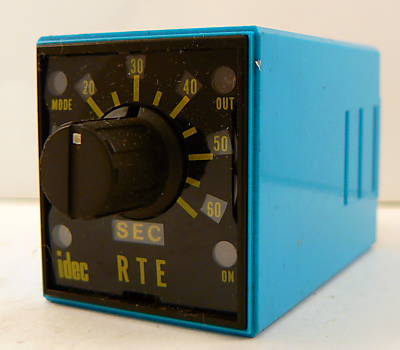

Idec rte-B11 120VAC electronic timer
IDEC RTE-B11 120VAC ELECTRONIC TIMER NIB.
* CONTACT RATING: 10 AMP 120 VAC

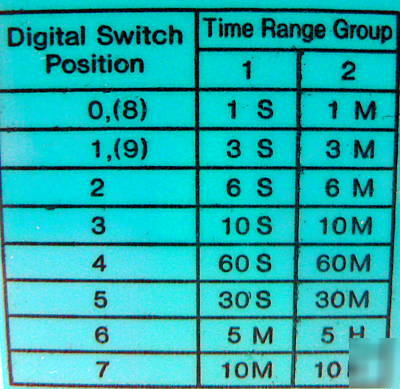

* 16 time ranges and 4 timing functions
* ON-delay, interval, OFF-delay, one-shot
* Time delays up to 10 hours
* Dimensions: (1.63" x 1.42" x 3.03")
* High repeat accuracy of 0.25%
* Power saving 2.2VA consumption
* ON and timing OUT LED indicators

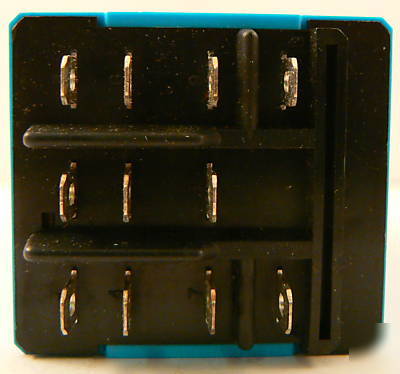

* Standard 8- or 11-pin and 11-blade termination
* 2 form C delayed output contacts
* Repeat Accuracy 0.25% maximum, 10ms
* Voltage Accuracy 1% maximum, 30ms
* Temperature Error 2% maximum, 30ms
* Setting Error 10% maximum
* Insulation Resistance 100 M minimum
