Kramer vp-8X8 VP8X8 video audio matrix switch xga vga
Manufacturer: Kramer Electronics Model/Part #: VP-8X8

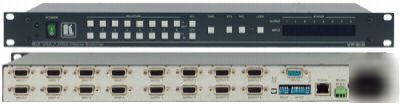

Kramer VP-8X8 8x8 PC Graphics Video VGA XGA Matrix Switch
The VP-8x8 is a high performance matrix switcher for computer graphics video signals, with resolutions ranging from VGA through UXGA and higher on 15-pin HD connectors. It can route any or all inputs to any or all outputs simultaneously.
* High Bandwidth - 400MHz (- 3dB) fully loaded.
* Active Input Indication reporting - Each input button on the front panel automatically lights up when the unit detects a video signal on that input. When an input is selected to be switched, the button changes to a different color to indicate it is the active input.
* Vertical Interval Switching - Up to a 4 second (user selectable) delay for clean switching.
* Control - Front panel, RS-232 (K-Router Windows - based software is included), & RS- 485, Ethernet & IR remote (Included).
* Front Panel Control Lockout.
* Memory Locations - Store multiple switches as presets (salvos) to be recalled and executed when needed
* Standard 19 Rack Mount Size - 1U.
