MSR606 hico mag card reader writer encoder MSR206 usb
163img copyb 606 IMG_0170 copy

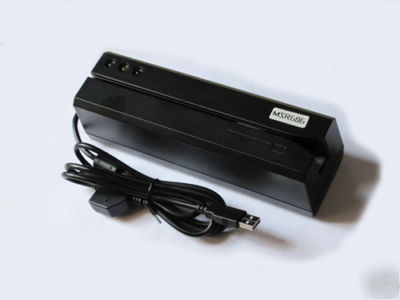

MSR606 Magnetic Reader/Writer
* 20 Free HiCo Magnetic Card
This Product is Good Quality and 100% Compatible with MSR206 .
It is ideal for access control, time keeping, banking,
and related applications. In fact,
is used, one can find a related use
for the versatile, user-friendly MSR606 reader/writer.
* Reading/Writing Drivers Licenses
* High/Low Coercivity encoding circuitry selectable on screen
* Can be use directly with Mini123ex etc
*100% USER Satisfy And Exeba Software Support
Dimensions of Box 290(L) x 180(W) x 100(H) mm
Power requirements +24VDC +/- 5%
Consumption Typical 350mA Max. 600mA plus for each writing track
Power supply External switching power 24V/2.5A
Communication Standard RS232 or USB with USB-to-RS232
Dielectric strength 500 VDC for 1 minute
Read card Track1 Track2 Track3
Bit per density 210 bpi 75/210bpi 210 bpi
Coercive force Read/write 300-4000 oe Mag.card
Read speed STD card Jitter +/-15% Amp. 60%
Write jitter Interval < +/- 10%, Sub-interval < +/- 12%
Error rate Read < 0.5% Write < 0.8%
Head life Min. 1000K swipes for both read/write head
mostly,many country need about 3 or 4 business days arrived
