New norse 390 logging winch 3PT. tractor mount

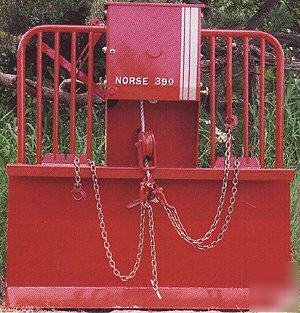

Norse 390. Strong and stable, this winch has a simple design and operation making it ideal for beginners to the woods. . For tractors 30 to 70 hp. Max pulling capacity 8580 lbs. Includes wire rope 3/8" x 165',PTO shaft, three choker chains and two gliders. Height 52", Width 50", Weight 445 lbs. Max pulling capacity - drum empty 39 kN, ( 3.9 t), 8 770 lbs. Number of drums 1. Haul-in speed @ 540 PTO rpm (Min - Max) 2.0-4.46 ft/sec Reduction ratio 1 : 5.18. Minimum PTO power (ISO 6687) 30hp. Controls Standard: Manual (cord) Clutch Friction pads, replaceable Brake pads. Pawl brake Attachment. Three-point hitch Height of pto shaft above ground 17 in., adjustable Height (standard) / Width / Depth 52 / 50 / 17 in. Weight (without wire rope) , 445 lbs.
Other models available. Timber Winches
For more information about this product, please use our online contact form, call (***) 763-2400
