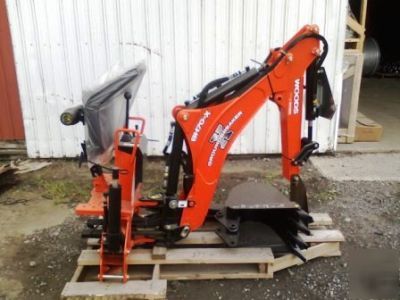

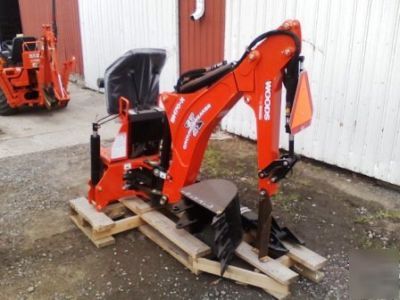

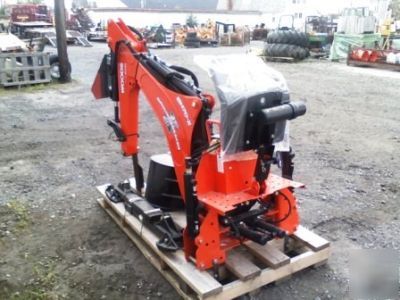

New woods BH70X-1 backhoe attachment with 18" bucket
NEW Woods BH70X Backhoe Attachment with Bucket
* Excavator-style curved boom that offers better reach and visibility, with less repositioning
* Significantly higher digging forces than competing models
* Comes with a heavy-duty, construction grade Gannon bucket
* Flip-over stabilizer pads are cast, not welded

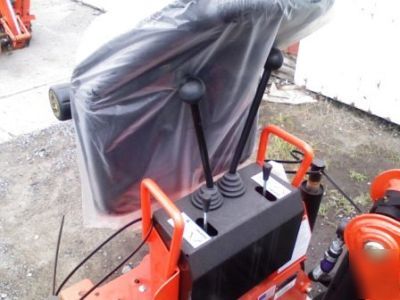

* Low console, big walk-through platform, and adjustable high-back seat for comfort
* Works with 18-40 HP tractors
* Digging depth (2 flat) is 84.5
* Digging depth (8 flat) is 61.25
* Reach from swing pivot is 113.5
* Transport height is 74.75
* Stabilizer spread (up) is 58.5
* Stabilizer spread (down) is 88.5
* Relief pressure is 2,030 psi
* Bucket digging force is 3,110 lbs.
* Dipperstick digging force is 2,000 lbs.
This backhoe comes standard with an 18" bucket. 9", 12", 16", and 24" buckets are also available (ask about pricing).
