Oriel instruments model 18094 encoder mike controller
Oriel Instruments Encoder Mike Controller Box 18094

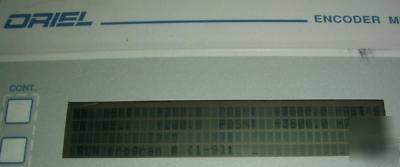

4-line x 40 column alphanumeric LCD
Three (3) axis control box w/option 18096

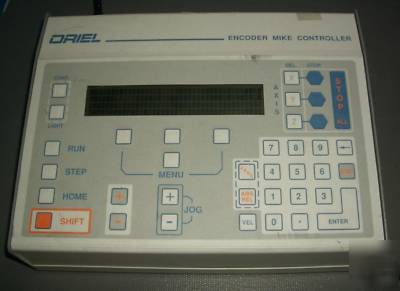

Front panel: Run, Step, Home, Shift, Menu, Jog, Axis Selection, Stop, Stop All, Zero, ABS Rel, Vel & Enter

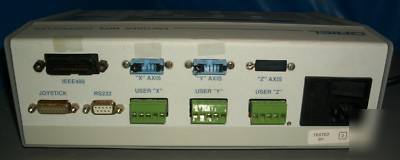

Back panel: IEEE488 port, X axis, Y axis, & Z axis (1st row)
2nd row: Joystick, RS232, User X, User Y & User Z ports
Possible helpful links (DC actuators product info) - http:// /eThermo/CMA/PDFs/Articles/articlesFile_10487.pdf
