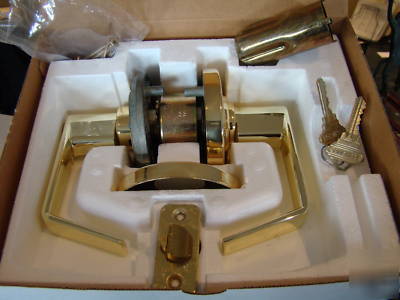

Schlage AL50PD sat 605 office entrance lockset ~ qty:10

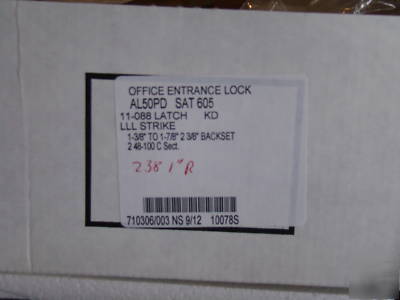

SCHLAGE OFFICE ENTRANCE LOCKSET
8EA ~ 2 3/8" BACKSET RADIUS 11-088 LATCH
1EA ~ 2 3/8" BACKSET SQUARE 11-085 LATCH
1EA ~ 2 3/4" BACKSET SQUARE 11-096 LATCH
T-STRIKE SQUARE CORNER AVAILABLE
D-STRIKE SQUARE CORNER AVAILABLE
The Schlage Saturn AL-Series commercial keyed lever locks utilize the Schlage original A-Series cylindrical chassis with stylish lever designs supported by heavy duty spring cages. This design provides strength and performance in the more abrasive Commercial Grade 2 applications.
The Saturn AL-Series is non-handed .
Keying: 6 pin tumbler with two nickel silver keys per lock. Stock locks are keyed 5 pin.
Applications: Standard duty commercial exterior and interior doors for medical, office, hotel/motel, public buildings, religious, multi-family, retail/storefront, government facilities and heavy duty residential.
Entrance/Office Lock - Push-button locking. Push-button locks outside lever until unlocked with key or by rotating inside lever.
This product is ADA Compliant.
* For 1-3/8in.(25mm) to 1-7/8in.(44mm) thick doors
* Meets ANSI A156.2, 1996, Series 4000 Grade 2 standards
* Meets all of the requirements of the Americans with Disabilities Act (ADA)
* UL listed for all functions up to 3-hour doors.
* Lever Length: 4-1/4in.(108mm)
* Rosette diameter: 3-7/16in.(87mm)
* Projection: 2-1/2in.(64mm)
