Vacuum table - 24" x 36"


Super precision, flatness, stability and durability.
http:// /vacuum/index.html
Nobody knows vacuum tables like Systematic Automation. Our low cost is the result of our high volume and efficient manufacturing processes. We manufacture hundreds of vacuum tables every year for dozens of different unique applications. The near perfect flatness (not more than +/- .001" per square foot) is the result of our proprietary manufacturing methods and highly specialized equipment.
We are the world's largest OEM supplier of precision vacuum tables for:
* assembly / alignment tools
* die cut sheet weeding stations
* easels for photography and fine art
* special application machines
* ultrasonic cutting machines
The sizes listed are the outside dimensions of the vacuum table. The standard vacuum hole pattern is two inches less than the outside of the table, so a 20" x 20" table will have an 18" x 18" vacuum hole pattern.
* Other sizes available upon request.

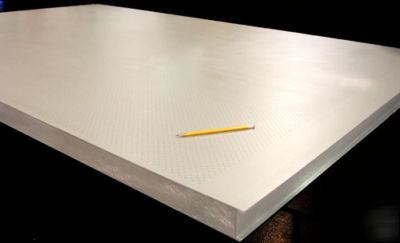

The standard 1/8" thick vacuum table top skin is a tough aluminum alloy backed up by a layer of epoxy resin. This combination provides excellent resistance to dents and dings. You literally have to hit these tables with a hammer to dent them. The entire vacuum table is constructed of aluminum with an aluminum honeycomb core. Commonality of materials reduces the effect of thermal expansion on table flatness. The honeycomb core is slotted top and bottom to provide vacuum flow evenly across the table.
For additional information and specifications, including:
- Vacuum Hole Size / Holding Power
- Vacuum Table Weight Calculation
more product information can be found at: http:// /vacuum/index.html
