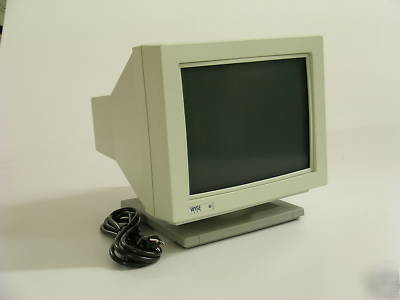

Wyse wy-160 display terminal b/w general purpose 14"
CONDITION: -OPEN BOX-APPEARS NEW- NO MANUAL

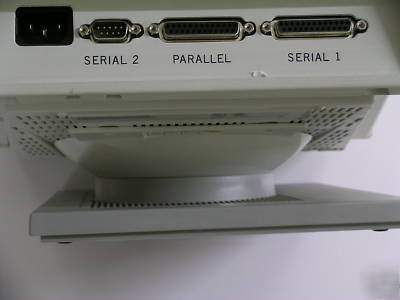

High-Performance General-Purpose Monochrome Terminal As the premium Wyse monochrome terminal, the WY-160 delivers a combination of advanced capabilities, multiple personalities, and ergonomic features unmatched in today's market. HIGHER PERFORMANCE, EXPANDED FUNCTIONALITY With the WY-160, Wyse exceeded all expectations. Advanced technology redefines the full-feature terminal by providing the enhanced features and exceptional flexibility required for today's evolving computing environments. The WY-160 is compatible with a wide range of industry-standard applications, supporting more than sixteen ASCII/ ANSI/ PC person- alities. Several graphics personalities are also supported, including the industry-standard Tektronix 4010/4014 protocol and four PC graphics modes ranging up to VGA resolution. The WY-160 installs easily in a variety of environments, with two serial ports and one parallel port standard. One serial port races at 115.2 Kbaud, faster than any other general purpose terminal. The WY-160 can simultaneously run two distinct terminal sessions, which can be configured easily and quickly via the keyboard. Other advanced features include a choice of four character resolutions, both ASCII and ANSI programmable soft fonts, up to 8 pages of screen memory, and multiple display formats. WYSE STYLE AND ERGONOMICS The WY-160 showcases the same world-class ergonomics designed into all Wyse "Terminals for the 90's" Full screen overscan and a fast 76 Hz refresh rate mean comfortable, flicker- free viewing. The well-defined, highest-resolution 10x20 character cell virtually eliminates eyestrain. Power, contrast, and brightness controls next to the front bezel make adjustments simple and convenient. Of course, the WY-160 comes standard with a 14-inch non-glare screen and a compact, tilt and swivel base. An optional adjustable-height arm imparts viewing comfort while freeing desk space. The WY-160 continues the Wyse tradition of attractive, high-quality terminals that adhere tightly to industry standards without compromising on enhanced features or price. It is one more development of the product philosophy that made Wyse the world's leading supplier of general purpose terminals.
15 MHz 8032 microcontroller
40KB high-speed static CMOS RAM (includes 8K
lithium battery-backed RAM)
Up to 8 pages of screen memory.
Surface-mounted, Wyse-designed application-
specific integrated circuit (ASIC)
120 VAC (North America) 220 VAC (International)
120 VAC 10%, 60 Hz 10% (North America)
220 VAC 10%, 50 Hz 10% (International)
14 inch diagonal, flat, non-glare CRT
Borderless, 24.5cm x 18.5cm
P-188(paper white), P-31(green), P-13(amber)
Flicker-free, 78Hz or standard 50Hz, NI
Clustered brightness, contrast and power
WY-60//50/50+, ADDS Viewpoint A2, TeleVideo
TVI-950/925/910+ DEC VT220, DEC VT100, DEC VT52,
PC terminal, Data General DG-200/210/214,
Tektronix 4010/4014, PC graphics, Alloy PCST/G
compatible, CGA, EGA, VGA, Hercules formats
27 lines x 80 or 132 columns
45 lines x 80 or 132 columns
Variable speed smooth/jump scroll, status line,
key click, and screen saver
Block or underline, blink, steady or off
Simultaneously program and display 512 unique
80 columns: 10x16 or 10x13 cells
132 columns: 9x16 or 9x13 cells
Normal, dim, bold, blank, all combinations of
reverse, underline and blink; choice of double
high and/or double wide per line
