LPC2103 ethernet development board
LPC2103 Ethernet Development Board Web Version
MDfly presents a brand new LPC2103 Ethernet Development Board for Philips NXP LPC2103 ARM Family. This board helps you get started writing programs and testing the Philips LPC2103 microcontroller and its capabilities.
* Built-in Philips NXP LPC2103 ARM 32-bit RISC microcontroller with thumb extensions 10-bit A/D converters, two 32-bit and two 16-bit timers/external event counters.
* Built-in JTAG interface, supports Keil Ulink or other JTAG programmer, debugger.
* Built-in 160 x 128 TFT 65535 Color LCD Display module with backlight for On-board experiment.
* Built-in RJ45 connector for Mini Web server experiment.
* Built-in backup battery holder for RTC(real-time clock).
* Built-in 32Khz oscillator for RTC.
* Built-in RS232 Serial port.
* Built-in voltage regulator, more reliable.
* On-board sample code, Schematics are included.
User.manual.lpc2101.lpc2102.lpc2103 Datasheet Download
Download: ENC28J60 Ethernet Controller
1 x LPC2103 Ethernet Development Board Web Version.
1 x 160x128 TFT Color LCD Display Module.
1 x 3.6V Li-ion Backup Battery.
1 x CD includes Related Datasheet, All Sample Codes, Schematics and User's Guide.

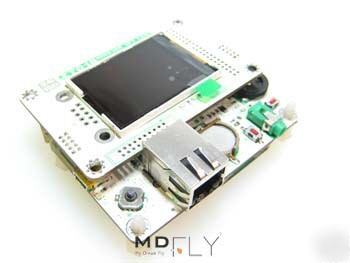

LPC2103 Ethernet Development Board
Philips LPC2103 Microcontroller
160x128 TFT Color LCD Display Module
Joystick & LAN port for Web Server
