Manatrol f-800-s throttle check hydraulic valve 1/2 npt
MANATROL F-800-S THROTTLE CHECK HYDRAULIC VALVE 1/2 NPT
PARKER MANATROL COLORFLOW F-800-S
1/2" NPT - STEEL - 5,000PSI - 30GPM

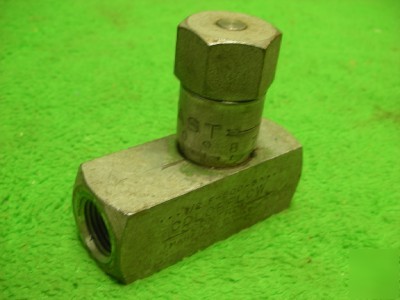

This listing is for 1 used item in good general condition with only some very minor cosmetic surface wear, as seen. Manatrol throttle check valves of series F allow the adjustment of the flow rate for a defined flow direction. The medium can flow back in the opposite direction via the built-in check valve with little flow resistance. A 2-stage needle allows for very exact setting of smaller flow rates with the first three rotations of the adjustment knob. After 3 more rotations, the valve is completely open. Colorflow color-coded stem. The valve setting can be locked using a locking screw. Female 1/2" NPT x Female 1/2" NPT, 5,000 PSI Max Operating Pressure, 30 GPM, Steel Body, Tapered Stainless Steel Needle, Hex Metal Knob. Measures approx 3-3/16" long overall. Don't miss your chance to own this valve now!
