Parker gemini servo GV6 digital motor drive controller

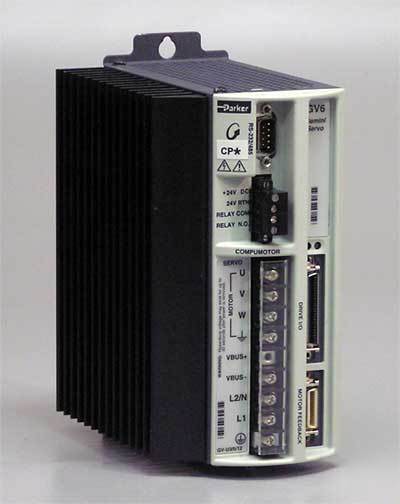

Parker Gemini Servo GV6 Digital Motor Drive Controller
Parker Gemini Servo GV6 Digital Motor Drive Controller
Use the links below to View More Images of the Parker Gemini Servo GV6 Digital Drive Controller
Title Parker Gemini Servo GV6 Digital Drive Controller
Compumotor's Gemini GV6 is a compact, low-cost, digital servo drive /
controller. In addition to all of the drive features of the Gemini GV, the GV6
incorporates basic motion control and programming capabilities, allowing
solutions for many distributed control applications. The Gemini GV6 is
easily configured programmed via RS232/485 using Compumotor s Motion
PlannerTM on a PC or Pocket Motion PlannerTM on a Windows
CETM-based Palm PC. The Gemini GV6 also offers connectivity
to several field buses including Profibus and DeviceNet.
Compumotor Gemini GV6 Digital Drive Controller Features
* Incorporates all of the powerful features of the Gemini GV digital servo drive
* Provides six power ranges for up to 11.8 kW of continuous power
* Stand-alone servo controller and drive in one small package
* Full ASCII communications capability
* Control features such as registration, motion profiles, S-curve velocity
profiling and conditional statements
* Program storage: Up to 32 programs or 190 lines of program code
* Daisy chain up to 99 units
* Simplified configuration and tuning
* 8 programmable inputs and 6 programmable outputs
* Wide range of PWM frequencies for linear motor support
