Gates 1000H200 powergrip industrial timing belts lot

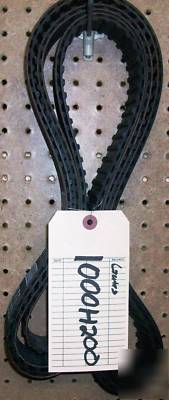

Item Title: Power Grip Industrial Synchronous Timing Belts (Lot of 2)
The trapezoidal tooth profile this belt well suited for use in positioning applications.
PowerGrip Timing belts are suitable for office machines, machine tools, postage equipment, sewing machines, vending machines, agriculture, outdoor power equipment, food processing, HVAC, oil fields, wood, paper, sand and gravel applications.
Fiberglass tensile cord provides high strength, excellent flex life, and high resistance to elongation. Neoprene body provides protection against grime, grease, oil, and moisture. Nylon tooth facing provides a durable wear surface for long service life. Eliminates lubrication and re-tensioning to reduce maintenance and labor required on drives.
Gates PowerGrip Timing belts are measured by:
The length of a PowerGrip Timing Belts is shown in the first part of the belt designation. The first number is the pitch length in tenths
of an inch. A 1000H200 has a 100.0 pitch length.
The pitch is the distance from center to center of the teeth (in inches). It is shown in the second part of the belt designation by a letter or letters. Part number 1000H200 has a 0.500 pitch. The letters correspond to pitches as follows:
MXL = Mini Extra Light = 0.080 pitch;
XL = Extra Light = 0.200 pitch;
XH = Extra Heavy = 0.875 pitch;
XXH = Double Extra Heavy = 1.250 pitch.
The width is shown in the last part of the belt designation. Part number 1000H200 is 2.00 wide.
