Ms, 4 pallet, cnc, horizontal, machining center
MS MACHINING SYSTEMS 4 pallet horizontal machining center
Longitudinal Travel (Saddle, X Axis) .......................... 120
Vertical Travel (Spindle, Y Axis).................................. 58
Cross Travel (Table, Z Axis).......................................... 58
Feed Rates................................................................... 0.001 to 100 ipm
Rapid Traverse Rate.................................................... 200 ipm
Z-Axis Thrust.................................................................. 6,000 pounds
Positioning Accuracy per Axis X, Y, Z....................... 0.0005 / ft.
Resolution..................................................................... 0.0001
Work Surface Dimensions............................................. 39" x 39"
Index Positions............................................................... 360
Maximum Workload..................................................... 10,000 pounds
Index Rate..................................................................... 2 RPM
Index Accuracies.........................................................10 arc seconds
Drive Motor.................................................................... 32 HP - DC
Spindle Speed Range (1 RPM increments)................ 0-650 low range, 0-2400 high range
Spindle Taper................................................................. No. 50 Taper-CV type
AUTOMATIC TOOL STORAGE & CHANGER
Storage Capacity......................................................... 48 Tools
Maximum Tool Weight................................... 50 pounds
Maximum Tool Length................................... 24 Inches
Full Chain......................................................... 5.5 Inches
Adjacent Pockets Empty............................. 10 Inches
Machine Weight........................................................... 72,000 pounds
Coolant System............................................................. 3HP / 50GPM / 50PSI
Note: Machining process/application may affect machine accuracy.
Accuracy calibration is available

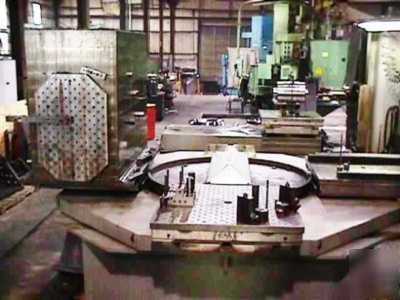

Pallet Changer.............................................................. 4 Pallets

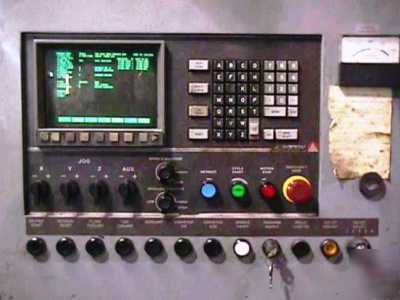

Control............................................................................ DynaPath Delta
9" Monochrome CRT, Auto Four Pallet Changer, and 48 Tool Magazine
Note: These are temporary specifications and are correct to the best of our knowledge; however, your inspection and verification are highly encouraged.
For questions, contact Keith at: (***) 324-3097 or email Keith at: ****@mrtool.net
