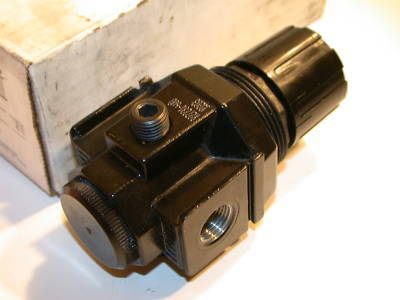

New aro air regulator R27231 3/8" npt R27231-600
NEW ARO AIR REGULATOR R27231 3/8" NPT R27231-600
Outlet pressure - 5-125 PSIG 100SCFM
ARO Module/Air 2000 Series regulators are designed to provide quick response and accurate pressure regulation over a wide range of applications. Two gauge ports allow for more versatility in mounting and usage of the unit.
Units have threaded ports for direct connection to pipe plumbing or, when used with modular port adapter kits, a single unit or combination of units can be piped into the air system in a modular arrangement.
Push-pull, non-rising knob allows one-hand adjustment. Pull to adjust, push to lock. Arrows on the knob indicate direction of pressure increase/ decrease.
Regulator can be mounted either up or down, increasing user flexibility.
Balanced valve-type diaphragm regulation assures positive pressure adjustment and rapid response to inlet pressure changes.
Regulator offers in-line repairability. Valve and diaphragm can be replaced without removing unit from line.
Regulator can be panel-mounted up to 1/4" thickness. Hole diameter is 1-7/8".
Buna N diaphragm and seals provide excellent elasticity and longer life.
