New west penn 421, 22AWG 3PAIR cmr shielded

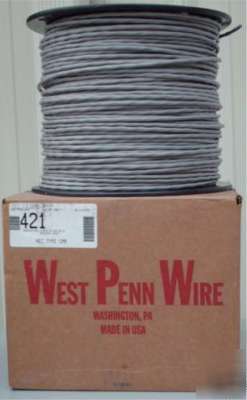

New Factory Sealed Boxes, 1000' reel.
Don't pay more! My company did a project and have a limited supply left over. Our excess is your gain.
* Description:22 AWG.- 3 PAIR Solid bare copper conductors, individually shielded with an overall jacket.
* NEC Rating: CMR, NEC Article 800
* Application: Indoor for: Intercom, Security, Sound, Audio, Background Music, and Power Limited Control Circuits.
* Conductor 22 AWG Bare Copper
* Insulation Thickness 0.010'' Nom.
* Number of Conductors 6 (3 Pair)
* Shield Each Pair 100% Aluminum Foil
* Jacket Thickness 0.015'' Nom.
* Overall Cable Diameter 0.207'' Nom.
* Approximate Cable Weight 34 Lbs/1M' Nom.
* Flame Rating UL 1666 Riser Flame Test
Link to factory specification page: http:// /pdfs/cm_PDF/421.pdf
* If you have any questions, feel free to ask.
* Must pay within three (3) working days.
* All Emails answered 10am - 4pm EST, M - F.
