Nsk nakanishi E2530 series nc / cnc lathe complete set
Nsk Nakanishi E2530 Series NC / CNC Lathe Complete Set

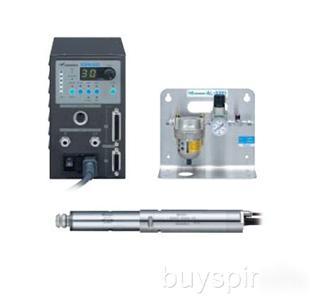

NC / CNC LATHE & AUTOMATION SOLUTIONS E2530 SERIES ELECTRIC SYSTEM COMPLETE SET
The E2530 Series is capable of up to 30,000 min-1(rpm) and employs a high-speed, ultra-quiet brushless motor.
-NE236 Control Unit; Power Cord Air Hose with filter (K-251): 6 mm x 6 ft Bracket (2 pcs.) Connector Cap Power Cord Grip Air Plug Screw (7 pcs.)
NE236 Control Unit Specifications
Power Source : AC 115V/230V, 50-60 Hz
Dimensions : W4.25" x D6.14" x H6.89"
The AL-0201 is a Clean air supply unit for the E2530 Series control unit. Dust and moisture in the compressed air are eliminated by the filter in the first stage and regulator provides accurate and stable air to the control unit.
High-Performance Electric Circuit
Motor/Spindle is stopped safely when, Warning/Error LED is lit, and Warning/Error Signal is output to external when there is something wrong with the motor/spindle, or any breakage is detected.
Motor cord disconnection and etc.
Error : Internal Circuit Error Voltage/Electric currency
Air shortage Locked Motor and others (Total 13 items)
External Input-Output Connector
[3] Error Reset Switch (RESET)
[4] Centering Switch {500 min-1(rpm)}
[5] Control Switch (AUTO/MANUAL)
[6] Rotating Direction Selector Switch (FWD./REV.)
[10] Rotating Speed Display (SPEED)
[11] Speed Control Potentiometer
The E2530 Series motor is a brushless DC motor utilizing hall elements and rare-earth magnet in the rotor. The Motor develops 125W.
The E2530 Series is equipped with a protective function to stop the spindle rotation automatically in case of overload ensuring safe and smooth operation. When the protective circuit is activated, an error code is shown on the digital display. In case of an air supply failure, the protective circuit limits the motor/spindle to 25,000 min-1(rpm) maximum.
The operating parameters can be preset for : *Fixed Motor Speed
*Maximum Motor Speed *Operating without Air
The compact, vertical design of the control unit makes it extremely easy to mount in cramped control cabinets.
Dual Voltage Power Source AC 115V/230V
The control unit is compatible with 115-230V main supply voltage and is equipped with a switch for voltage selection. The power supply cord is packaged for your ordered voltage specifications. Fuses and power must be exchanged to compatible component when changing supply voltage. Verify that voltage selection, power cord and fuse type are compatible with supply voltage prior to connecting to power supply.
