Numatics 5 flexibloks, 5 solenoid valves
Other items for sale Numatics 5 Flexibloks, 5 Solenoid Valves

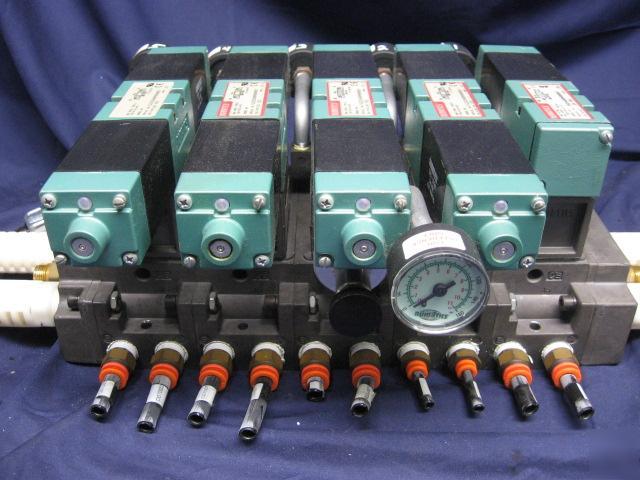

There are 5 Flexibloks and 5 Solenoid Control Valves in this unit:
The Numatics FlexiBlok line is a series of high performance air preparation products. Made of aluminum which is perfect for applications such as robotic arms that cannot afford extra weight. The block head design with integrated mounting holes eliminates costly mounting plates and adapters, making the product easier to use and install.
4 Solenoid Air Control Valves, model # 152ss600m000061, 4 Way, 3 Position, Closed Center, Valve Type Base Mounted, Actuator/Return Solenoid/Solenoid, 24 VDC Coil, 69 CFM, Coefficient of Volume 1.5, Cv 1.5, Max Temp Range -10 to 115 F, Max Operating PSI 150, Current Rating 250 mA (In Rush), 250 mA (Holding) mA, Meets/Exceeds NEMA 4, Pressure Range 0 to 150 PSI, Vacuum 0 to 28 InHg, Requires Mark 15 Base or Manifold, Length 9 7/8 In, Width 1 3/8 In, Height 1 1/2 In
1 Solenoid Air Control Valve, 4 Way, 2 Position, Valve Type Base Mounted, Actuator/Return Solenoid/Spring, 24 VDC Coil, 69 CFM, Coefficient of Volume 1.5, Cv 1.5, Max Temp Range -10 to 115 F, Max Operating PSI 150, Current Rating 250 mA (In Rush), 250 mA (Holding) mA, Meets/Exceeds NEMA 4, Pressure Range 0 to 150 PSI, Vacuum 0 to 28 InHg, Requires Mark 15 Base or Manifold, Length 6 5/16 In, Width 1 11/16 In, Height 1 11/16 In
