Rp-bnc jack bulkhead with striaght connector for RG316

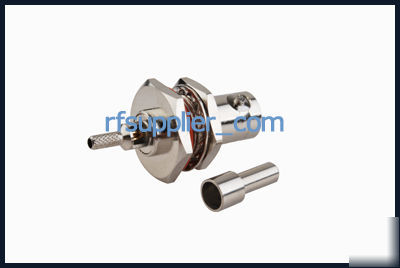

RP-BNC female bulkhead with O-ring striaght connector for RG316
Suitable cable: RG316 RG179 RG178 1.13 1.37 cable
Temp.range................-65 +165 (PE Cable ) degree Celsius
Vibration.................MIL-STD-202,Method 213
Impedanec.................50 .75
Frequency Range...........DC 4GHz
Working Voltage...........500V max
Withstand Voltage.........1500V rms
Center Contact............ 1.5m
Outer Contact............. 1m
Insulation resistance .... 5000 m
VSWR Straight............. 1.22
Right angle?.............. 1.30
Durability(mating)........ 500 (cycles)
shell ..............brass ................nickelplated
contact pin ........brass.................gold or silverplated
socket............. beryllium.............gold or silverplated
elastic contact.... beryllium ............gold or silverplated
crimping suite..... copper alloy......... nickelplated
0-ring sealing .....6146 silastic
If you require a different mounting style, we will be happy to consider your requirements to provide a working solution.
