4 inch submersible pump 1/2H.p. flint & walling
This a F&W ( Flint & Walling, INC.) Four Inch Submersible - Single Phase -
10 GPM ( Gallon Per Minute ) Captain Series, Model 4F10A05305
1/2 H.P. - 230 Volt - 2 Wire with Ground - 1 Phase- 60 Hertz
No Control Box Required - Date Code July / 12 / 2005
Liquid Pump - Serial No. 1692317
The Motor is a Franklin Electric Serial No. 05C18-30-4262
1/2 H.P. - 60 Hertz - 230 Volts - 5.0 Amp - KW 0.37
RPM 3450 - SF Max Amp 6.0 - PH / 1 - KVA Code R
SF 1.6 - Continuous Duty E79319
2 - Wire Submersible Motor Thermally Protected
Equipped with Lightning Arrestors
This is all the information that is on the pump. It is complete. It has been stored in a dry safe area.

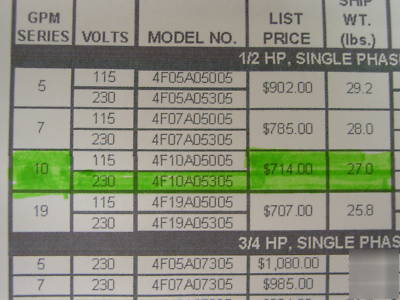

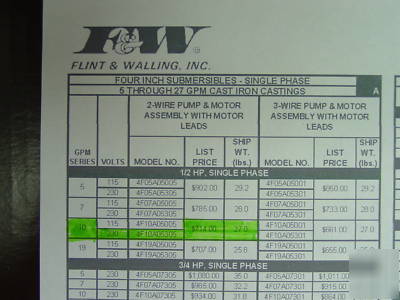

It has never been used. If you look at all the pictures the last two are pictures of the most recent
price list I was able to find. I found a pricing and specifications spead sheet through a search on google.
There are no dents on the case or housing. The case has a little rust
build up from being stored in its original box that came in contact with water so I removed it from

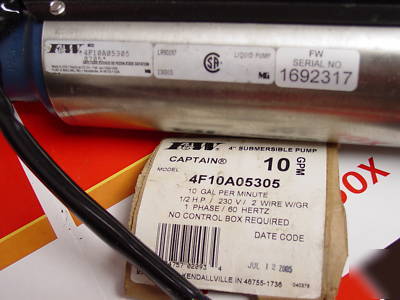

box and kept the original label with is shown in the above pictures with the pump. Thought I
would be in need of it some day but just tired of hanging on to it. As far as I know it is in working condition.
and insured. It will be double box'ed with padding. I was able to import a chart below that may help those
needed information. Please feel free to submit an offer.
According to the most recent price list the pumps cost is 714.00
10 gallon per minute 1/2 hp pump curve.
10 GPM 1/2 hp Submersible Pump
